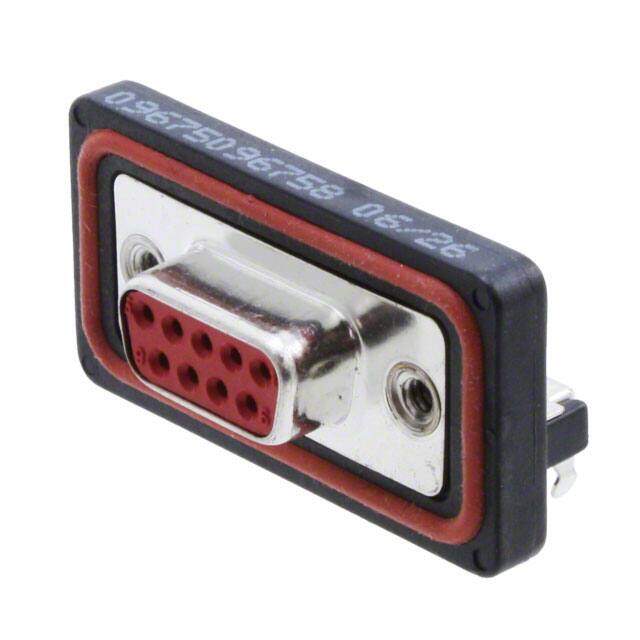

09675096758
RoHS
RoHS compliant
RoHS compliantPackage Metal
Category Connectors, Interconnects / D-Sub Connectors
Description
D-Sub Standard Connectors D SUB IP67 9 POLE ANGLED
PDF
/
Buying Options
Total Price: USD $25.22
Unit Price: USD $25.2208
≥1 USD $25.2208
≥10 USD $22.08712
≥100 USD $21.133024
≥500 USD $20.4512
≥1000 USD $19.769552
≥3000 USD $18.678845
Inventory: 73
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Contact Material NOT SPECIFIED
Contact Plating Gold
Mount Through Hole
Mounting Type Panel Mount, Through Hole, Right Angle
Package / Case Metal
Dielectric Material Thermoplastic, Glass Filled
Housing Material Glass
Shell Material, Finish Brass, Tin Plated
Technical
Operating Temperature -25°C~70°C
Packaging Bulk
JESD-609 Code e4
Feature Board Lock
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Receptacle, Female Sockets
Number of Positions 9
Number of Rows 2
Gender Receptacle
MIL Conformance NO
DIN Conformance YES
IEC Conformance NO
Filter Feature NO
Contact Type Signal
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 2.74mm
Total Number of Contacts 9
Orientation Right Angle
Ingress Protection IP67 - Dust Tight, Waterproof
Depth 19.3mm
Current Rating 5A
Shell Finish NICKEL
Contact Finish Gold or Gold-Palladium
Mating Information MULTIPLE MATING PARTS AVAILABLE
Empty Shell NO
Flange Feature Housing/Shell (4-40)
Connector Style D-Sub
Number of Ports 1
Shell Size, Connector Layout 1 DE E
Backset Spacing 0.228 (5.80mm)
Dimensions
Length 40mm
Width 19.3mm
Contact Finish Thickness 30.0μin 0.76μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Ratings Dust Tight, IP67, Waterproof
Alternative Model
