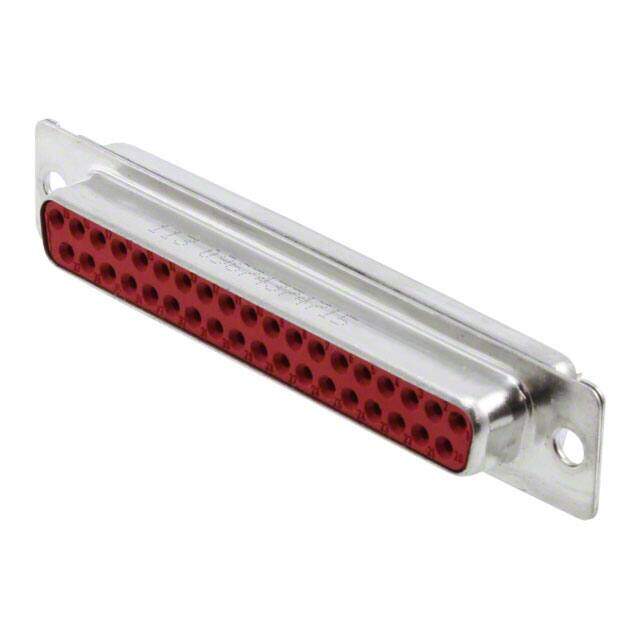

09674374715
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description
D-Sub Standard Connectors SUB IP 67 37 POLE FEMALE SOLDER CUP
PDF
/
Inventory: 9230
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Contact Material Copper Alloy
Contact Plating Gold
Mount Free Hanging, Panel
Mounting Type Free Hanging (In-Line)
Dielectric Material Thermoplastic, Glass Filled
Housing Material Glass
Shell Material, Finish Brass, Tin Plated
Technical
Operating Temperature -25°C~70°C
Packaging Bulk
JESD-609 Code e4
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder Cup
Connector Type Receptacle, Female Sockets
Number of Positions 37
Number of Rows 2
Gender Female
Additional Feature PANEL MOUNTABLE
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Signal
Mixed Contacts NO
Total Number of Contacts 37
Orientation Straight
Ingress Protection IP67 - Dust Tight, Waterproof
Depth 14.4mm
Current Rating 5A
Shell Finish NICKEL
Contact Finish Gold or Gold-Palladium
Mating Information MULTIPLE MATING PARTS AVAILABLE
UL Flammability Code 94V-0
Empty Shell NO
Wire Gauge 20 AWG
Flange Feature Housing/Shell (Unthreaded)
Connector Style D-Sub
Contact Form Machined
Shell Size, Connector Layout 4 DC C
Dimensions
Length 69.3mm
Width 12.5mm
Contact Finish Thickness 30.0μin 0.76μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Ratings Dust Tight, IP67, Waterproof
