09674095615
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description

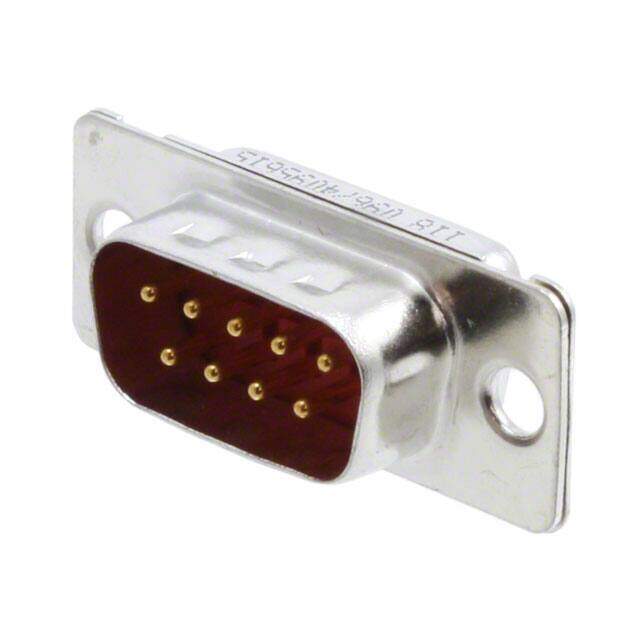

D-Sub Standard Connectors D SUB IP 67 9 POLE MALE SOLDER CUP S4
PDF
/
Buying Options
Total Price: USD $17.22
Unit Price: USD $17.22479
≥1 USD $17.22479
≥10 USD $16.2498
≥100 USD $15.33
≥500 USD $14.46226
≥1000 USD $13.64365
≥3000 USD $12.87136
Inventory: 605
Minimum: 1
-
+
Technical Details
Compliance
Ratings Dust Tight, IP67, Waterproof
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness 30.0μin 0.76μm
Width 10.8mm
Length 30.8mm
Technical
Contact Design PREASSEM CONN
Shell Size, Connector Layout 1 DE E
Contact Form Machined
Number of Ports 1
Connector Style D-Sub
Flange Feature Housing/Shell (Unthreaded)
Insulation Resistance 5000000000Ohm
Wire Gauge 20 AWG
Rated Current (Signal) 5A
Empty Shell NO
Mating Information MULTIPLE MATING PARTS AVAILABLE
Reliability COMMERCIAL
Contact Finish Gold or Gold-Palladium
Shell Finish NICKEL
Current Rating 5A
Depth 14.3mm
Ingress Protection IP67 - Dust Tight, Waterproof
Orientation Straight
Total Number of Contacts 9
Mixed Contacts NO
Contact Type Signal
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Subcategory D Type Connectors
Additional Feature PANEL MOUNTABLE
Gender Male
Number of Rows 2
Number of Positions 9
Connector Type Plug, Male Pins
Termination Solder Cup
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Grounding Indents
JESD-609 Code e4
Packaging Bulk
Operating Temperature -25°C~70°C
Physical
Shell Material, Finish Brass, Tin Plated
Housing Material Glass
Dielectric Material Thermoplastic, Glass Filled
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Plating Gold
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 15 Weeks
