09672505604
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description

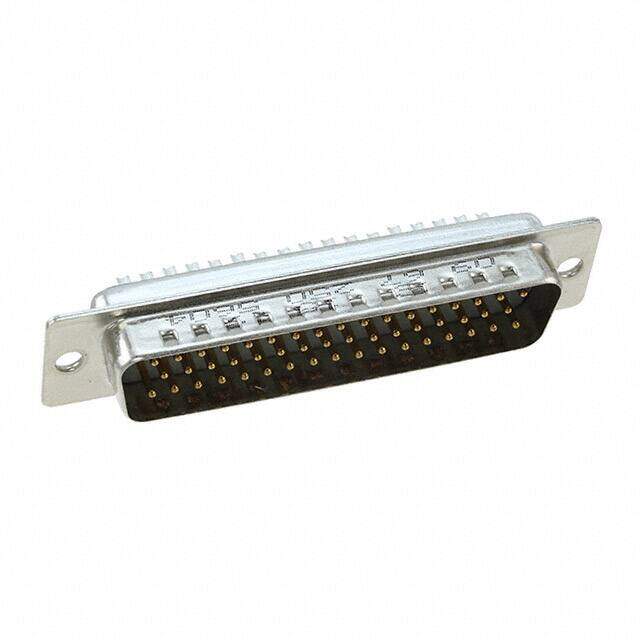

D-Sub Standard Connectors D SUB ML 50 PL3 STAMPED SOLDER CUP
PDF
/
Buying Options
Total Price: USD $9.01
Unit Price: USD $9.0112
≥1 USD $9.0112
≥10 USD $8.1136
≥100 USD $7.643328
≥500 USD $7.447264
≥1000 USD $7.251288
≥3000 USD $6.467366
Inventory: 82
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Physical
Contact Material Copper Alloy
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Dielectric Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Housing Material PBT
Shell Material, Finish Steel
Technical
Operating Temperature -40°C~85°C
Packaging Bulk
Feature Grounding Indents
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder Cup
Connector Type Plug, Male Pins
Number of Positions 50
Number of Rows 3
Gender Receptacle
Additional Feature STANDARDS: DIN 41652; IEC 60807
Subcategory D Type Connectors
Contact Finish - Mating NOT SPECIFIED
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Signal
Mixed Contacts NO
Option GENERAL PURPOSE
Current Rating (Amps) 6.5A
Total Number of Contacts 50
Shell Finish TIN
Reference Standard UL
Mating Information MULTIPLE MATING PARTS AVAILABLE
Body Breadth 0.606 inch
UL Flammability Code 94V-0
Empty Shell NO
Contact Resistance 10mOhm
Wire Gauge 20 AWG
Insulation Resistance 10000000000Ohm
Flange Feature Housing/Shell (Unthreaded)
Mating Contact Pitch 0.108 inch
Dielectric Withstanding Voltage 1000VAC V
Connector Style D-Sub
Mating Contact Row Spacing 0.112 inch
Contact Form Stamped
Shell Size, Connector Layout 5 DD D
Contact Design PREASSEM CONN
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
