09672375615
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description

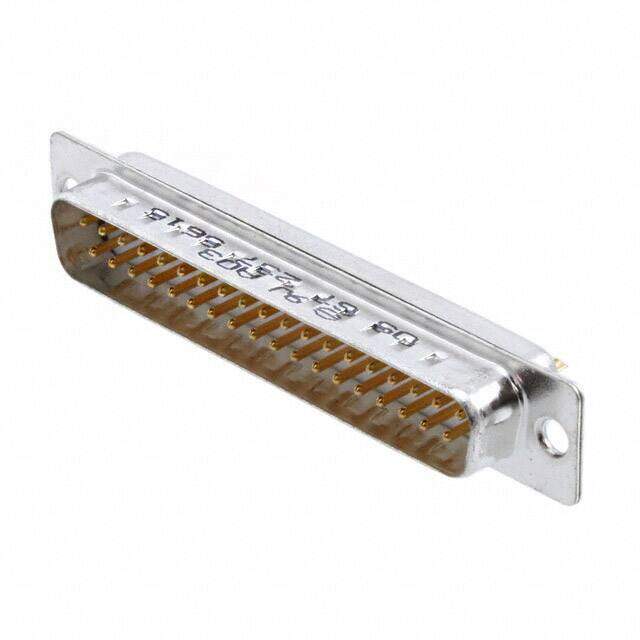

D-Sub Standard Connectors D SUB ML 37 AU2 STAMPED SOLDER CUP
PDF
/
Buying Options
Total Price: USD $6.14
Unit Price: USD $6.1424
≥1 USD $6.1424
≥10 USD $5.55456
≥100 USD $5.247616
≥500 USD $5.119488
≥1000 USD $4.863496
≥3000 USD $4.351565
Inventory: 110
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Contact Material Copper Alloy
Contact Plating Gold
Mount Free Hanging, Panel
Mounting Type Free Hanging (In-Line)
Dielectric Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Housing Material PBT
Shell Material, Finish Steel
Technical
Operating Temperature -40°C~85°C
Packaging Bulk
Feature Grounding Indents
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder Cup
ECCN Code EAR99
Connector Type Plug, Male Pins
Number of Positions 37
Number of Rows 2
Gender Male
HTS Code 8536.69.40.30
Subcategory D Type Connectors
Contact Finish - Mating NOT SPECIFIED
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Signal
Mixed Contacts NO
Option GENERAL PURPOSE
Total Number of Contacts 37
Orientation Straight
Depth 17mm
Current Rating 6.5A
Shell Finish TIN
Reference Standard UL
Mating Information MULTIPLE MATING PARTS AVAILABLE
UL Flammability Code 94V-0
Empty Shell NO
Contact Resistance 10mOhm
Wire Gauge 20 AWG
Insulation Resistance 10000000000Ohm
Flange Feature Housing/Shell (Unthreaded)
Mating Contact Pitch 0.108 inch
Body/Shell Style RECEPTACLE
Dielectric Withstanding Voltage 1000VAC V
Connector Style D-Sub
Insertion Force-Max 3.336 N
Withdrawl Force-Min 3.336 N
Contact Form Stamped
Shell Size, Connector Layout 4 DC C
Contact Design PREASSEM CONN
Dimensions
Length 69.7mm
Width 12.5mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
