09672374704
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description

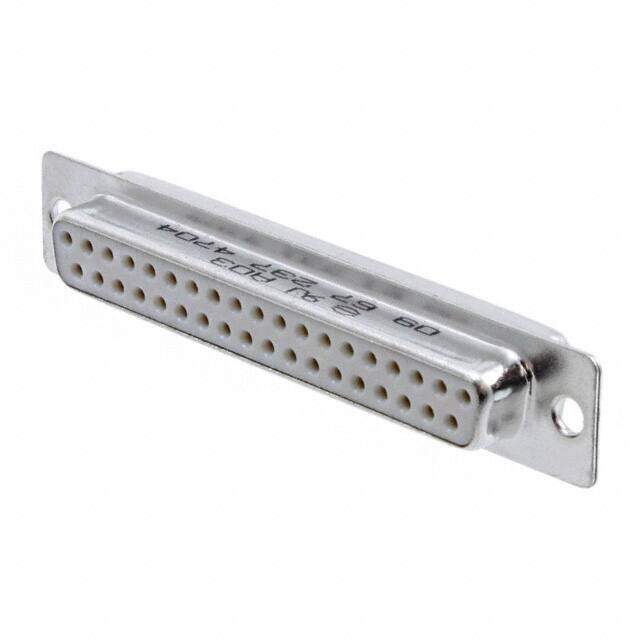

D Sub Connector, DB37, 37 Contacts, Receptacle, Solder Cup, DC, Steel Body
PDF
/
Inventory: 3874
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Material Flammability Rating UL94 V-0
Dimensions
Width 12.55mm
Length 69.7mm
Technical
Test Voltage 1kV
Contact Design PREASSEM CONN
Shell Size, Connector Layout 4 DC C
Contact Form Stamped
Withdrawl Force-Min 3.336 N
Insertion Force-Max 3.336 N
Body Plating Tin
Number of Ports 1
Connector Style D-Sub
Body/Shell Style PLUG
Flange Feature Housing/Shell (Unthreaded)
Wire Gauge 20 AWG
Contact Resistance 10mOhm
Working Voltage 125V
Empty Shell NO
UL Flammability Code 94V-0
Voltage - Rated AC 125V
Reference Standard UL
Shell Finish TIN
Current Rating 6.5A
Depth 17mm
Orientation Straight
Total Number of Contacts 37
Pitch 2.77mm
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Signal
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating NOT SPECIFIED
Voltage - Rated DC 125V
Subcategory D Type Connectors
HTS Code 8536.69.40.30
Gender Female
Number of Rows 2
Color Grey
Connector Type Receptacle, Female Sockets
ECCN Code EAR99
Termination Solder Cup
Number of Terminations 37
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Packaging Tray
Operating Temperature -40°C~85°C
Physical
Body Material Metal
Dielectric Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Material Steel
Mounting Type Free Hanging (In-Line)
Mount Free Hanging, Panel
Contact Plating Gold
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 9 Weeks
