09672255604
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description

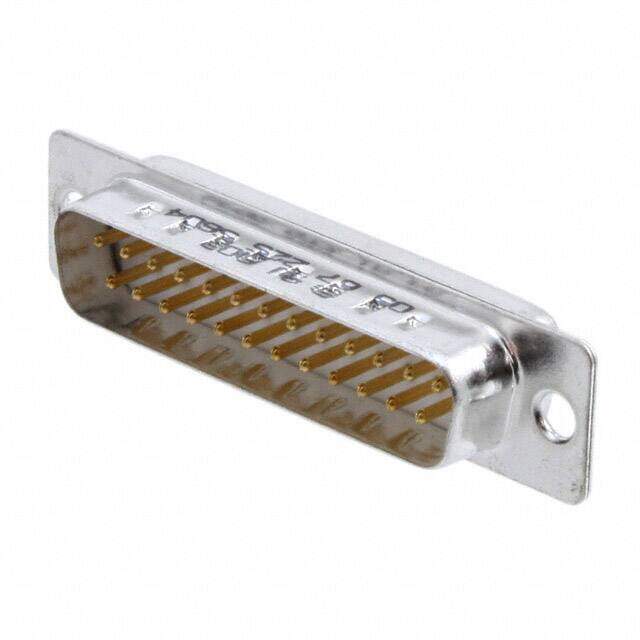

CONN D-SUB PLUG 25P SLDR CUP
PDF
/
Buying Options
Total Price: USD $3.67
Unit Price: USD $3.6696
≥1 USD $3.6696
≥10 USD $3.32816
≥100 USD $3.152512
≥500 USD $3.07912
≥1000 USD $2.932424
≥3000 USD $2.565878
Inventory: 277
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Material Flammability Rating UL94 V-0
Dimensions
Width 12.5mm
Length 53.2mm
Height 12.55mm
Technical
Test Voltage 1kV
Contact Design PREASSEM CONN
Shell Size, Connector Layout 3 DB B
Contact Form Stamped
Withdrawl Force-Min 3.336 N
Insertion Force-Max 3.336 N
Body Plating Tin
Number of Ports 1
Connector Style D-Sub
Body/Shell Style RECEPTACLE
Flange Feature Housing/Shell (Unthreaded)
Wire Gauge 20 AWG
Contact Resistance 10mOhm
Working Voltage 125V
Empty Shell NO
UL Flammability Code 94V-0
Voltage - Rated AC 125V
Reference Standard UL
Shell Finish TIN
Current Rating 6A
Depth 17mm
Orientation Straight
Total Number of Contacts 25
Pitch 2.77mm
Current Rating (Amps) 6.5A
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Signal
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating NOT SPECIFIED
Voltage - Rated DC 125V
Subcategory D Type Connectors
HTS Code 8536.69.40.30
Gender Male
Number of Rows 2
Color Grey
Connector Type Plug, Male Pins
ECCN Code EAR99
Termination Solder Cup
Number of Terminations 25
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Grounding Indents
Packaging Bulk
Operating Temperature -40°C~85°C
Physical
Body Material Metal
Dielectric Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Material Steel
Mounting Type Free Hanging (In-Line)
Mount Free Hanging, Panel
Contact Plating Gold
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 10 Weeks
