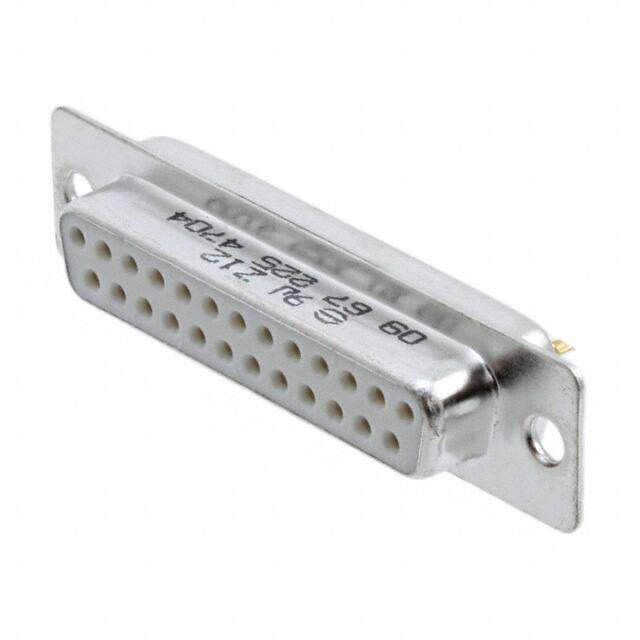

09672254704
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description
CONN D-SUB RCPT 25P SLDR CUP
PDF
/
Buying Options
Total Price: USD $3.98
Unit Price: USD $3.9776
≥1 USD $3.9776
≥10 USD $3.61152
≥100 USD $3.420384
≥500 USD $3.181904
≥1000 USD $2.78417
≥3000 USD $2.704627
Inventory: 62
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Material Copper Alloy
Contact Plating Gold
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Material Steel
Dielectric Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Body Material Metal
Technical
Operating Temperature -40°C~85°C
Packaging Bulk
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 25
Termination Solder Cup
Connector Type Receptacle, Female Sockets
Color Grey
Number of Rows 2
Gender Receptacle
Subcategory D Type Connectors
Voltage - Rated DC 125V
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Signal
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 2.77mm
Total Number of Contacts 25
Orientation Straight
Depth 17mm
Current Rating 6.5A
Shell Finish TIN
Reference Standard UL
Voltage - Rated AC 125V
UL Flammability Code 94V-0
Empty Shell NO
Working Voltage 125V
Contact Resistance 10mOhm
Wire Gauge 20 AWG
Flange Feature Housing/Shell (Unthreaded)
Body/Shell Style PLUG
Connector Style D-Sub
Number of Ports 1
Body Plating Tin
Insertion Force-Max 3.336 N
Withdrawl Force-Min 3.336 N
Contact Form Stamped
Shell Size, Connector Layout 3 DB B
Contact Design PREASSEM CONN
Test Voltage 1kV
Dimensions
Height 12.55mm
Length 53.2mm
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
