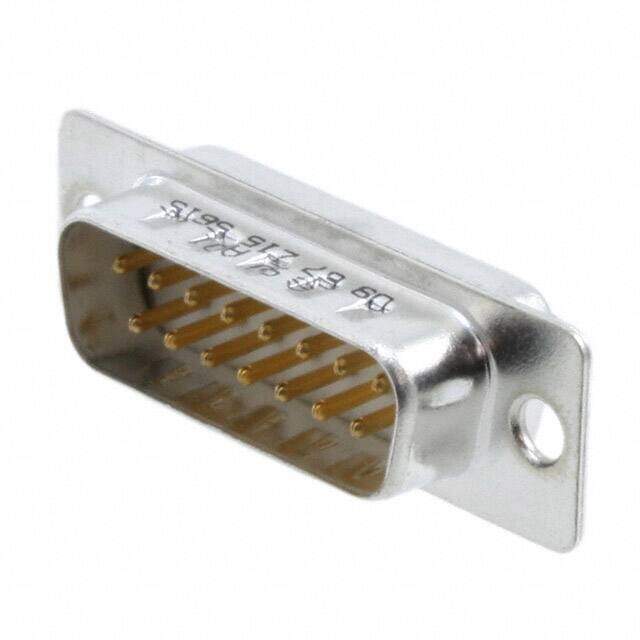

09672155615 image
Favorite
09672155615 image
Favorite

09672155615

HARTING
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / D-Sub Connectors
Description D-Sub Standard Connectors D SUB MA STAMPED SOLDER CUP 15 AU2
PDF
/
Buying Options
Total Price: USD $3.58
Unit Price: USD $3.5816
≥1 USD $3.5816
≥10 USD $3.24808
≥100 USD $3.07648
≥500 USD $3.005024
≥1000 USD $2.861936
≥3000 USD $2.50419
Inventory: 119
Minimum: 1
-
+

Technical Details

Technical

Pitch 2.77mm
Total Number of Contacts 15
Orientation Straight
Depth 17mm
Current Rating 6.5A
Shell Finish TIN
Empty Shell NO
Wire Gauge 20 AWG
Flange Feature Housing/Shell (Unthreaded)
Connector Style D-Sub
Number of Ports 1
Contact Form Stamped
Shell Size, Connector Layout 2 DA A
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Signal
Filter Feature NO
IEC Conformance NO
DIN Conformance YES
MIL Conformance YES
Contact Finish - Mating NOT SPECIFIED
HTS Code 8536.69.40.30
Gender Male
Number of Rows 2
Number of Positions 15
Connector Type Plug, Male Pins
ECCN Code EAR99
Termination Solder Cup
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Grounding Indents
Packaging Bulk
Operating Temperature -40°C~85°C

Dimensions

Length 39.5mm
Width 12.5mm

Compliance

Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant

Physical

Shell Material, Finish Steel
Housing Material PBT
Dielectric Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Mounting Type Free Hanging (In-Line)
Mount Free Hanging, Panel
Contact Plating Gold
Contact Material Copper Alloy

Supply Chain

Factory Lead Time 4 Weeks
