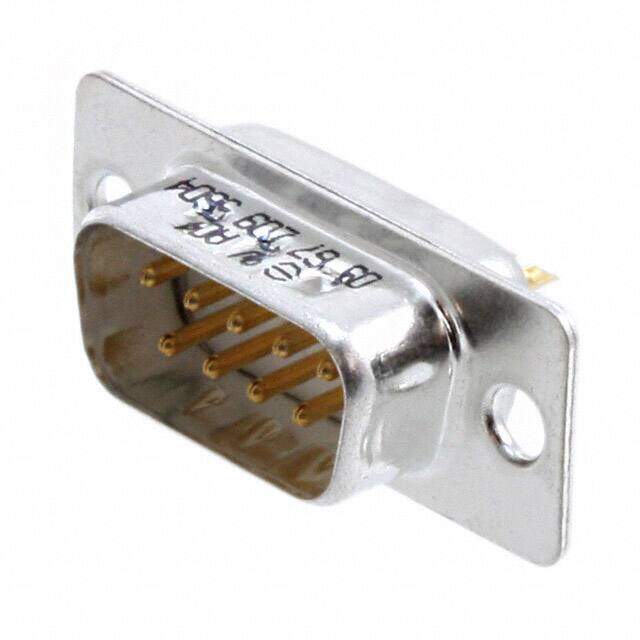

09672095604 image
Favorite
09672095604 image
Favorite

09672095604

HARTING
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / D-Sub Connectors
Description CONNECTOR, D-SUB, PLUG, TIN & DIMP, 9WAY
PDF
/
Buying Options
Total Price: USD $2.64
Unit Price: USD $2.64
≥1 USD $2.64
≥10 USD $2.40064
≥100 USD $2.27392
≥500 USD $2.115344
≥1000 USD $1.85093
≥3000 USD $1.798051
Inventory: 212
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 9 Weeks

Physical

Contact Material Copper Alloy
Contact Plating Gold
Mount Free Hanging, Panel
Mounting Type Free Hanging (In-Line)
Insulation Material Thermoplastic
Dielectric Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Body Material Metal
Shell Material, Finish Steel

Technical

Operating Temperature -40°C~85°C
Packaging Tray
Feature Grounding Indents
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 9
Termination Solder Cup
Connector Type Plug, Male Pins
Color Grey
Number of Rows 2
Gender Male
Subcategory D Type Connectors
Voltage - Rated DC 125V
Contact Finish - Mating NOT SPECIFIED
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Signal
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 2.77mm
Total Number of Contacts 9
Orientation Straight
Depth 17mm
Current Rating 6.5A
Shell Finish TIN
Reference Standard UL
Voltage - Rated AC 125V
Contact Gender Male
Empty Shell NO
Working Voltage 125V
Contact Resistance 10mOhm
Wire Gauge 20 AWG
Flange Feature Housing/Shell (Unthreaded)
Body/Shell Style RECEPTACLE
Connector Style D-Sub
Number of Ports 1
Body Plating Tin
Insertion Force-Max 3.336 N
Withdrawl Force-Min 3.336 N
Contact Form Stamped
Shell Size, Connector Layout 1 DE E
Test Voltage 1kV

Dimensions

Height 12.55mm
Length 31.2mm
Width 12.5mm

Compliance

Material Flammability Rating UL94 V-0
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
