09672094715
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description

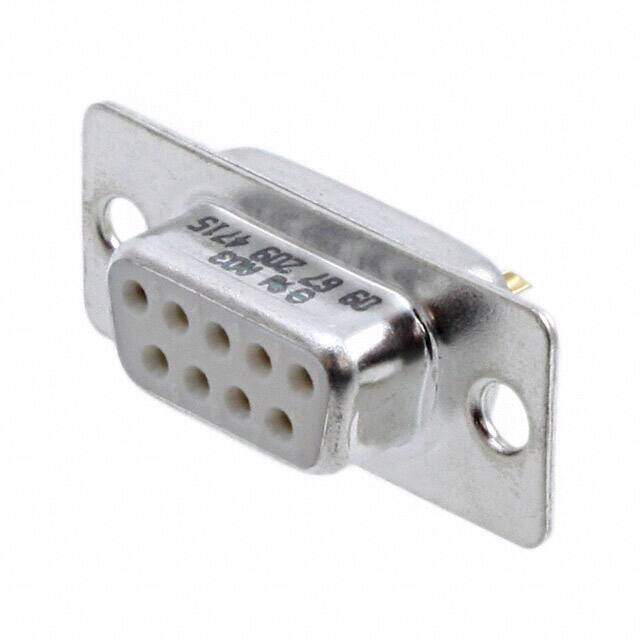

D-Sub Standard Connectors D SUB FE 9P AU2 STAMPED SOLDER CUP
PDF
/
Buying Options
Total Price: USD $3.12
Unit Price: USD $3.124
≥1 USD $3.124
≥10 USD $2.83448
≥100 USD $2.685056
≥500 USD $2.497616
≥1000 USD $2.185454
≥3000 USD $2.123
Inventory: 659
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Width 12.5mm
Length 31.2mm
Technical
Contact Design PREASSEM CONN
Shell Size, Connector Layout 1 DE E
Contact Form Stamped
Withdrawl Force-Min 3.336 N
Insertion Force-Max 3.336 N
Number of Ports 1
Connector Style D-Sub
Body/Shell Style PLUG
Flange Feature Housing/Shell (Unthreaded)
Wire Gauge 20 AWG
Empty Shell NO
Mating Information MULTIPLE MATING PARTS AVAILABLE
Reference Standard UL
Shell Finish TIN
Current Rating 6.5A
Depth 17mm
Orientation Straight
Total Number of Contacts 9
Pitch 2.77mm
Current Rating (Amps) 6.5A
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Signal
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating NOT SPECIFIED
Subcategory D Type Connectors
Gender Receptacle
Number of Rows 2
Connector Type Receptacle, Female Sockets
Termination Solder Cup
Number of Terminations 9
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Packaging Tray
Operating Temperature -40°C~85°C
Physical
Shell Material, Finish Steel
Dielectric Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Insulation Material GLASS FILLED POLYBUTYLENE TEREPHTHALATE-POLYESTER
Mounting Type Free Hanging (In-Line)
Mount Free Hanging, Panel
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 4 Weeks
