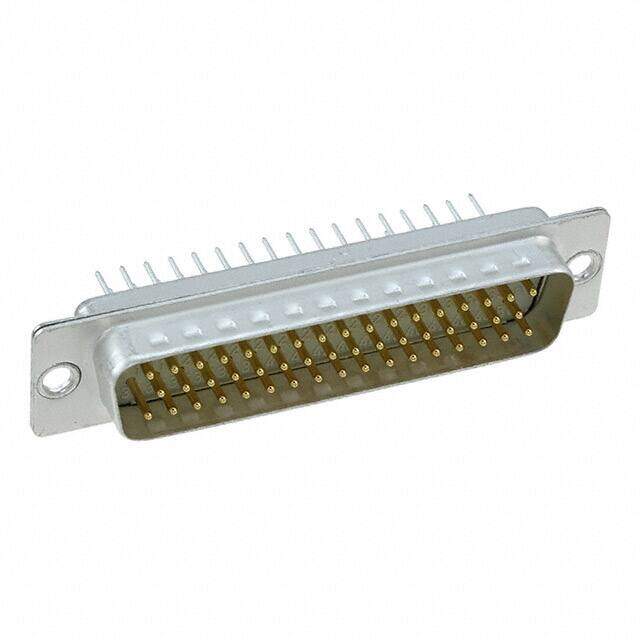

09670505655
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description
Conn D-Subminiature PIN 50 POS Solder ST Thru-Hole 50 Terminal 1 Port
PDF
/
Buying Options
Total Price: USD $15.32
Unit Price: USD $15.3208
≥1 USD $15.3208
≥10 USD $13.28096
≥100 USD $12.58752
≥500 USD $12.405008
≥1000 USD $10.945616
≥3000 USD $10.215885
Inventory: 74
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Contact Material Copper Alloy
Mount Through Hole
Mounting Type Through Hole
Dielectric Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Housing Material Polybutylene
Shell Material, Finish Steel
Technical
Operating Temperature -55°C~125°C
Packaging Bulk
JESD-609 Code e4
Feature Grounding Indents
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Plug, Male Pins
Number of Positions 50
Number of Rows 3
Gender Male
Subcategory D Type Connectors
Contact Finish - Mating GOLD
MIL Conformance NO
DIN Conformance YES
IEC Conformance YES
Filter Feature NO
Contact Type Signal
Mixed Contacts NO
Option GENERAL PURPOSE
Current Rating (Amps) 7.5A
Test Voltage 1kV
Shell Size, Connector Layout 5 DD D
Contact Form Machined
PCB Contact Row Spacing 2.8448 mm
Number of Ports 1
Connector Style D-Sub
Body/Shell Style RECEPTACLE
Flange Feature Housing/Shell (Unthreaded)
Empty Shell NO
UL Flammability Code 94V-0
Body Breadth 0.606 inch
Mating Information MULTIPLE MATING PARTS AVAILABLE
PCB Contact Pattern STAGGERED
Number Of PCB Rows 3
Reference Standard UL
Shell Finish TIN
Current Rating 7A
Terminal Pitch 2.7686mm
Orientation Straight
Total Number of Contacts 50
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Material Flammability Rating UL94 V-0
