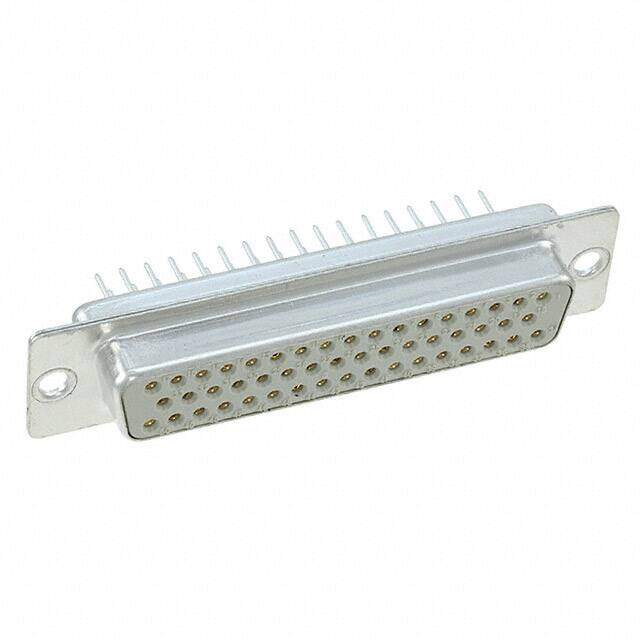

09670504755
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description
D-Sub Standard Connectors DSUB SV FEM TSDP STR 50P AU2
PDF
/
Buying Options
Total Price: USD $19.1
Unit Price: USD $19.1048
≥1 USD $19.1048
≥10 USD $16.73144
≥100 USD $16.008256
≥500 USD $15.491872
≥1000 USD $14.9754
≥3000 USD $14.149168
Inventory: 137
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Material Flammability Rating UL94 V-0
Dimensions
Length 67mm
Technical
Test Voltage 1kV
Shell Size, Connector Layout 5 DD D
Contact Form Machined
PCB Contact Row Spacing 2.8448 mm
Number of Ports 1
Connector Style D-Sub
Body/Shell Style PLUG
Flange Feature Housing/Shell (Unthreaded)
Empty Shell NO
UL Flammability Code 94V-0
Body Breadth 0.606 inch
Mating Information MULTIPLE MATING PARTS AVAILABLE
PCB Contact Pattern STAGGERED
Number Of PCB Rows 3
Reference Standard UL
Shell Finish TIN
Current Rating 7A
Depth 15.5mm
Terminal Pitch 2.7686mm
Orientation Straight
Total Number of Contacts 50
Current Rating (Amps) 7.5A
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Signal
Filter Feature NO
IEC Conformance YES
DIN Conformance YES
MIL Conformance NO
Subcategory D Type Connectors
Gender Female
Number of Rows 3
Number of Positions 50
Connector Type Receptacle, Female Sockets
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e4
Packaging Bulk
Operating Temperature -55°C~125°C
Physical
Shell Material, Finish Steel
Housing Material Polybutylene
Dielectric Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Mounting Type Through Hole
Mount Through Hole
Contact Material Gold, Nickel
Supply Chain
Factory Lead Time 10 Weeks
