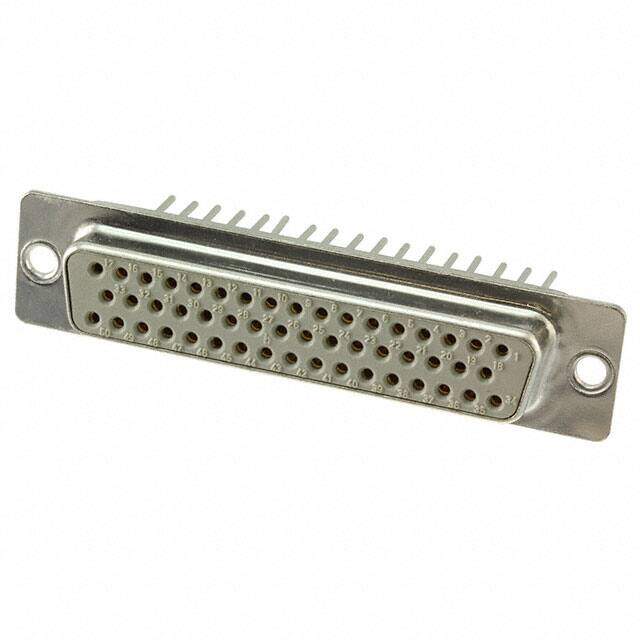

09670504707
RoHS
RoHS compliant
RoHS compliantPackage Metal
Category Connectors, Interconnects / D-Sub Connectors
Description
D-Sub Standard Connectors 50P DSUB FEMALE MIN D W/ WRAP POST
PDF
/
Buying Options
Total Price: USD $20.92
Unit Price: USD $20.923503
≥1 USD $20.923503
≥10 USD $19.739163
≥100 USD $18.621845
≥500 USD $17.567775
≥1000 USD $16.573377
Inventory: 3367
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Contact Material Copper Alloy
Contact Plating Gold
Mount Panel
Mounting Type Panel Mount, Through Hole
Package / Case Metal
Dielectric Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Housing Material Polybutylene
Shell Material, Finish Steel
Technical
Operating Temperature -55°C~125°C
Packaging Bulk
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Wire Wrap
ECCN Code EAR99
Connector Type Receptacle, Female Sockets
Number of Positions 50
Number of Rows 3
Gender Receptacle
Voltage - Rated 1kV
Subcategory D Type Connectors
Contact Finish - Mating NOT SPECIFIED
MIL Conformance NO
DIN Conformance YES
IEC Conformance YES
Filter Feature NO
Contact Type Signal
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 2.76mm
Total Number of Contacts 50
Orientation Straight
Depth 18mm
Current Rating 7.5A
Shell Finish TIN
Reference Standard UL
Number Of PCB Rows 3
PCB Contact Pattern STAGGERED
Mating Information MULTIPLE MATING PARTS AVAILABLE
Body Breadth 0.606 inch
UL Flammability Code 94V-0
Empty Shell NO
Flange Feature Housing/Shell (Unthreaded)
Body/Shell Style PLUG
Connector Style D-Sub
Number of Ports 1
PCB Contact Row Spacing 2.8448 mm
Shell Size, Connector Layout 5 DD D
Test Voltage 1kV
Dimensions
Length 67mm
Width 15.5mm
Compliance
Material Flammability Rating UL94 V-0
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
