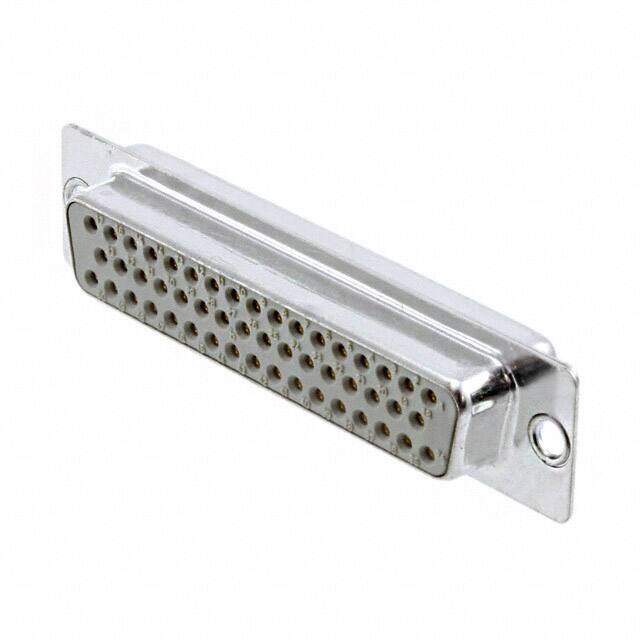

09670504704
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description
D-Sub Standard Connectors DSUB SV FEM TSDC 50P AU3
PDF
/
Buying Options
Total Price: USD $17.02
Unit Price: USD $17.0192
≥1 USD $17.0192
≥10 USD $14.90192
≥100 USD $14.258464
≥500 USD $13.7984
≥1000 USD $13.338424
≥3000 USD $12.602515
Inventory: 142
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Width 15.75mm
Length 67.31mm
Technical
Contact Design PREASSEM CONN
Shell Size, Connector Layout 5 DD D
Contact Form Machined
Mating Contact Row Spacing 0.112 inch
Connector Style D-Sub
Dielectric Withstanding Voltage 1000VAC V
Body/Shell Style PLUG
Flange Feature Housing/Shell (Unthreaded)
Insulation Resistance 10000000000Ohm
Wire Gauge 20 AWG
Contact Resistance 10mOhm
Empty Shell NO
UL Flammability Code 94V-0
Body Breadth 0.606 inch
Mating Information MULTIPLE MATING PARTS AVAILABLE
Reference Standard UL
Shell Finish TIN
Current Rating 7A
Depth 17mm
Orientation Straight
Total Number of Contacts 50
Pitch 2.77mm
Current Rating (Amps) 7.5A
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Signal
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating NOT SPECIFIED
Subcategory D Type Connectors
Additional Feature STANDARDS: DIN 41652; IEC 60807
Gender Receptacle
Number of Rows 3
Number of Positions 50
Connector Type Receptacle, Female Sockets
ECCN Code EAR99
Termination Solder Cup
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Packaging Bulk
Operating Temperature -40°C~85°C
Physical
Shell Material, Finish Steel
Housing Material PBT
Dielectric Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Mounting Type Free Hanging (In-Line)
Mount Free Hanging, Panel
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 10 Weeks
