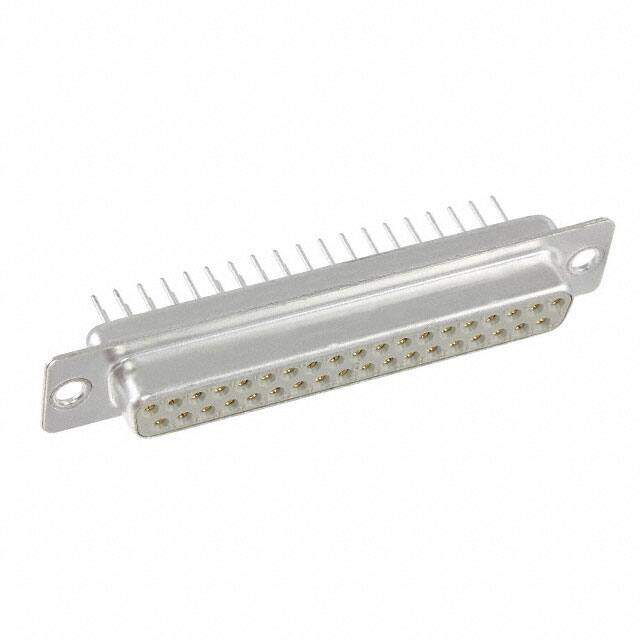

09670374754
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description
D-Sub Standard Connectors DSUB SV FE TSDP STR 37P AU3
PDF
/
Buying Options
Total Price: USD $14.27
Unit Price: USD $14.270449
≥1 USD $14.270449
≥10 USD $13.462686
≥100 USD $12.700649
≥500 USD $11.981746
≥1000 USD $11.303533
Inventory: 5361
Minimum: 1
-
+
Technical Details
Technical
Subcategory D Type Connectors
Contact Finish - Mating NOT SPECIFIED
MIL Conformance NO
DIN Conformance YES
IEC Conformance YES
Filter Feature NO
Contact Type Signal
Mixed Contacts NO
Option GENERAL PURPOSE
Current Rating (Amps) 7.5A
Pitch 2.76mm
Total Number of Contacts 37
Orientation Straight
Depth 12.5mm
Shell Finish TIN
Reference Standard UL
Number Of PCB Rows 2
PCB Contact Pattern STAGGERED
Mating Information MULTIPLE MATING PARTS AVAILABLE
UL Flammability Code 94V-0
Empty Shell NO
Flange Feature Housing/Shell (Unthreaded)
Body/Shell Style PLUG
Connector Style D-Sub
Number of Ports 1
Insertion Force-Max 3.336 N
Withdrawl Force-Min 3.336 N
Contact Form Machined
Shell Size, Connector Layout 4 DC C
HTS Code 8536.69.40.30
Gender Female
Number of Rows 2
Number of Positions 37
Connector Type Receptacle, Female Sockets
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Packaging Tray
Operating Temperature -55°C~125°C
Dimensions
Length 69.7mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Physical
Shell Material, Finish Steel
Housing Material Metal
Dielectric Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Mounting Type Through Hole
Mount Through Hole
Contact Material NOT SPECIFIED
Supply Chain
Factory Lead Time 12 Weeks
