09670374715050
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description

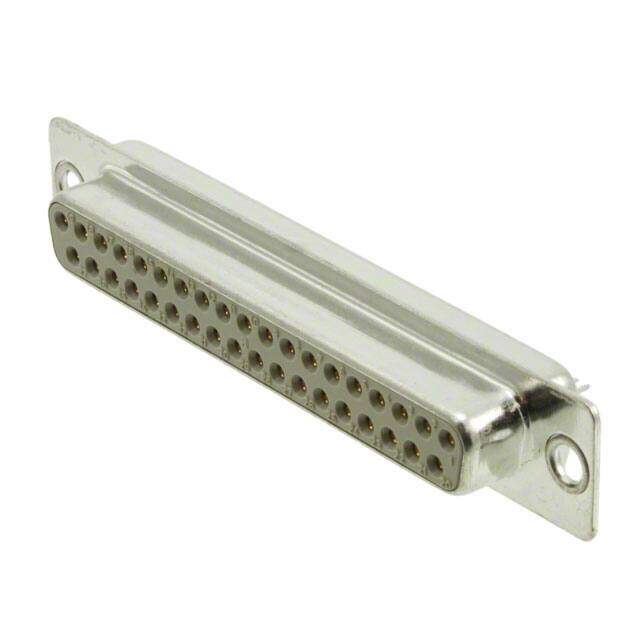

CONN D-SUB RCPT 37P STR SLDR CUP
PDF
/
Inventory: 6104
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 20 Weeks
Physical
Contact Material Copper Alloy
Contact Plating Gold
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Dielectric Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Housing Material PBT
Shell Material, Finish Steel
Technical
Operating Temperature -55°C~125°C
Packaging Bulk
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder Cup
Connector Type Receptacle, Female Sockets
Number of Positions 37
Number of Rows 2
Contact Type Signal
Current Rating (Amps) 7.5A
Contact Finish Gold or Gold-Palladium
Wire Gauge 20 AWG
Flange Feature Housing/Shell (Unthreaded)
Connector Style D-Sub
Contact Form Machined
Shell Size, Connector Layout 4 DC C
Dimensions
Contact Finish Thickness 30.0μin 0.76μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
