09670374707

HARTING
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / D-Sub Connectors

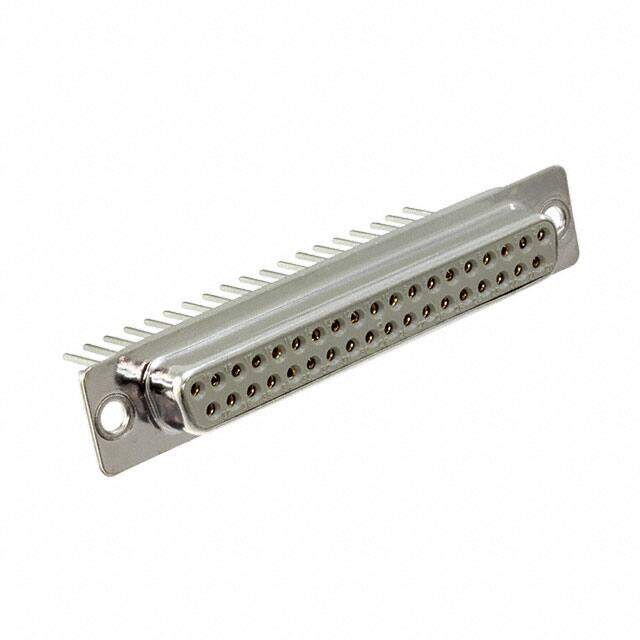

Description D-Sub Standard Connectors DSUB SV FEM TWW STR 37P AU3
PDF
/
Buying Options
Total Price: USD $18.3
Unit Price: USD $18.2952
≥1 USD $18.2952
≥10 USD $15.85232
≥100 USD $15.02512
≥500 USD $14.807408
≥1000 USD $13.06536
≥3000 USD $12.194336
Inventory: 109
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Material Flammability Rating UL94 V-0

Dimensions

Width 12.5mm
Length 69.7mm

Technical

Test Voltage 1kV
Shell Size, Connector Layout 4 DC C
Withdrawl Force-Min 3.336 N
Insertion Force-Max 3.336 N
Number of Ports 1
Connector Style D-Sub
Body/Shell Style PLUG
Flange Feature Housing/Shell (Unthreaded)
Rated Current (Signal) 7.5A
Empty Shell NO
UL Flammability Code 94V-0
Mating Information MULTIPLE MATING PARTS AVAILABLE
PCB Contact Pattern STAGGERED
Number Of PCB Rows 2
Reference Standard UL
Shell Finish TIN
Current Rating 7A
Orientation Straight
Total Number of Contacts 37
Pitch 2.76mm
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Signal
Filter Feature NO
IEC Conformance YES
DIN Conformance YES
MIL Conformance NO
Subcategory D Type Connectors
HTS Code 8536.69.40.30
Gender Receptacle
Number of Rows 2
Number of Positions 37
Connector Type Receptacle, Female Sockets
ECCN Code EAR99
Termination Wire Wrap
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Packaging Bulk
Operating Temperature -55°C~125°C

Physical

Shell Material, Finish Steel
Housing Material Polybutylene
Dielectric Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Mounting Type Panel Mount, Through Hole
Mount Panel
Contact Material Copper Alloy

Supply Chain

Factory Lead Time 11 Weeks
