09670255604
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description

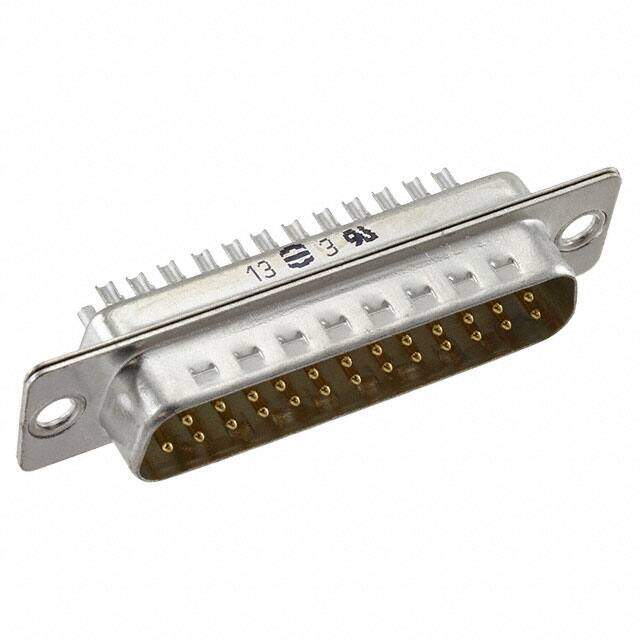

D Sub Connector, DB25, 25 Contacts, Plug, Solder, DB, Tin And Dimple, Metal Body
PDF
/
Buying Options
Total Price: USD $9.79
Unit Price: USD $9.7944
≥1 USD $9.7944
≥10 USD $8.81232
≥100 USD $8.30192
≥500 USD $8.08896
≥1000 USD $7.876088
≥3000 USD $7.024618
Inventory: 169
Minimum: 1
-
+
Technical Details
Technical
HTS Code 8536.69.40.30
Subcategory D Type Connectors
Voltage - Rated DC 125V
Contact Finish - Mating NOT SPECIFIED
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Signal
Mixed Contacts NO
Option GENERAL PURPOSE
Current Rating (Amps) 7.5A
Total Number of Contacts 25
Orientation Straight
Depth 17mm
Current Rating 7A
Shell Finish TIN
Reference Standard UL
UL Flammability Code 94V-0
Empty Shell NO
Working Voltage 125V
Contact Resistance 10mOhm
Wire Gauge 20 AWG
Flange Feature Housing/Shell (Unthreaded)
Body/Shell Style RECEPTACLE
Connector Style D-Sub
Number of Ports 1
Body Plating Tin
Insertion Force-Max 3.336 N
Withdrawl Force-Min 3.336 N
Contact Form Machined
Shell Size, Connector Layout 3 DB B
Gender Male
Number of Rows 2
Connector Type Plug, Male Pins
ECCN Code EAR99
Termination Solder Cup
Number of Terminations 25
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Grounding Indents
Packaging Bulk
Operating Temperature -55°C~125°C
Contact Design PREASSEM CONN
Physical
Shell Material, Finish Steel
Body Material Metal
Housing Material PBT
Dielectric Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Mounting Type Free Hanging (In-Line)
Mount Free Hanging, Panel
Contact Plating Gold
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 4 Weeks
Dimensions
Height 12.5mm
Length 53.2mm
Width 12.5mm
Compliance
Material Flammability Rating UL94 V-0
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
