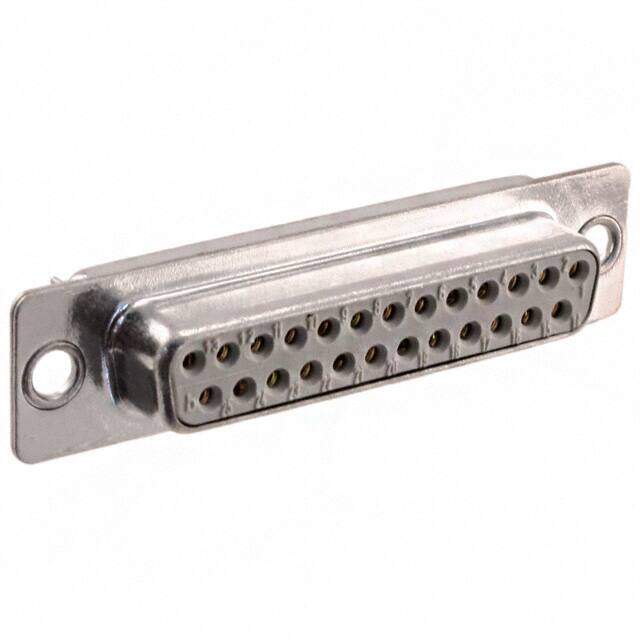

09670254755
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description
D-Sub Standard Connectors DSUB SV FE TSDP STR 25P AU2
PDF
/
Buying Options
Total Price: USD $10.89
Unit Price: USD $10.8944
≥1 USD $10.8944
≥10 USD $9.65712
≥100 USD $9.285408
≥500 USD $8.913872
≥1000 USD $8.418608
≥3000 USD $7.675818
Inventory: 112
Minimum: 1
-
+
Technical Details
Technical
Current Rating (Amps) 7.5A
Total Number of Contacts 25
Orientation Straight
Depth 12.5mm
Current Rating 7A
Shell Finish TIN
Reference Standard UL
Number Of PCB Rows 2
PCB Contact Pattern STAGGERED
Mating Information MULTIPLE MATING PARTS AVAILABLE
UL Flammability Code 94V-0
Empty Shell NO
Flange Feature Housing/Shell (Unthreaded)
Body/Shell Style PLUG
Connector Style D-Sub
Number of Ports 1
Insertion Force-Max 3.336 N
Withdrawl Force-Min 3.336 N
Contact Form Machined
Shell Size, Connector Layout 3 DB B
Test Voltage 1kV
Operating Temperature -55°C~125°C
Packaging Bulk
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 25
Termination Solder
Connector Type Receptacle, Female Sockets
Number of Rows 2
Gender Female
Subcategory D Type Connectors
Contact Finish - Mating NOT SPECIFIED
MIL Conformance NO
DIN Conformance YES
IEC Conformance YES
Filter Feature NO
Contact Type Signal
Mixed Contacts NO
Option GENERAL PURPOSE
Dimensions
Length 53.2mm
Compliance
Material Flammability Rating UL94 V-0
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Material Gold, Nickel
Mount Through Hole
Mounting Type Through Hole
Dielectric Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Housing Material Polybutylene
Shell Material, Finish Steel
