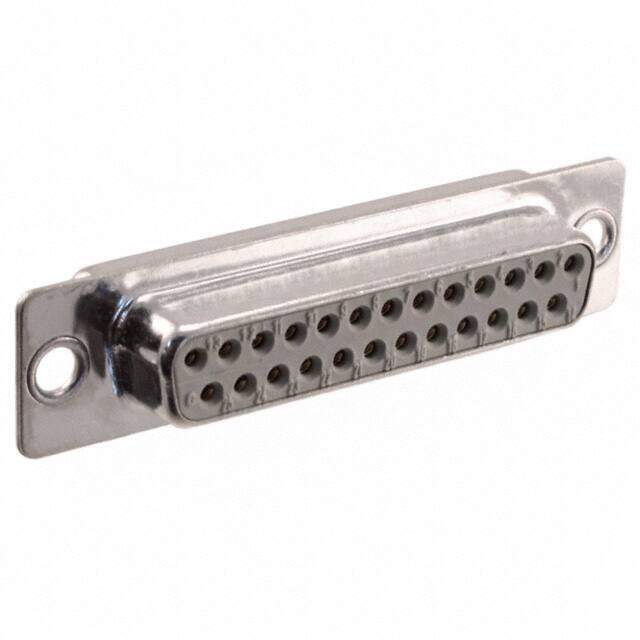

09670254715
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description
D-Sub Standard Connectors DSUB SV FEM TSDC 25P AU2
PDF
/
Buying Options
Total Price: USD $10.74
Unit Price: USD $10.736
≥1 USD $10.736
≥10 USD $9.51544
≥100 USD $9.149184
≥500 USD $8.783104
≥1000 USD $8.295144
≥3000 USD $7.563248
Inventory: 227
Minimum: 1
-
+
Technical Details
Technical
Number of Terminations 25
Termination Solder Cup
ECCN Code EAR99
Connector Type Receptacle, Female Sockets
Number of Rows 2
Gender Receptacle
HTS Code 8536.69.40.30
Subcategory D Type Connectors
Contact Finish - Mating NOT SPECIFIED
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Signal
Mixed Contacts NO
Option GENERAL PURPOSE
Current Rating (Amps) 7.5A
Total Number of Contacts 25
Orientation Straight
Depth 17mm
Current Rating 7A
Shell Finish TIN
Reference Standard UL
Mating Information MULTIPLE MATING PARTS AVAILABLE
UL Flammability Code 94V-0
Empty Shell NO
Wire Gauge 20 AWG
Flange Feature Housing/Shell (Unthreaded)
Body/Shell Style PLUG
Connector Style D-Sub
Number of Ports 1
Insertion Force-Max 3.336 N
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Packaging Bulk
Operating Temperature -55°C~125°C
Withdrawl Force-Min 3.336 N
Contact Form Machined
Shell Size, Connector Layout 3 DB B
Contact Design PREASSEM CONN
Test Voltage 1kV
Physical
Shell Material, Finish Steel
Housing Material Polybutylene
Dielectric Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Material Liquid Crystal Polymer, Polymer
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 4 Weeks
Dimensions
Length 53.2mm
Compliance
Material Flammability Rating UL94 V-0
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
