09670155604
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description

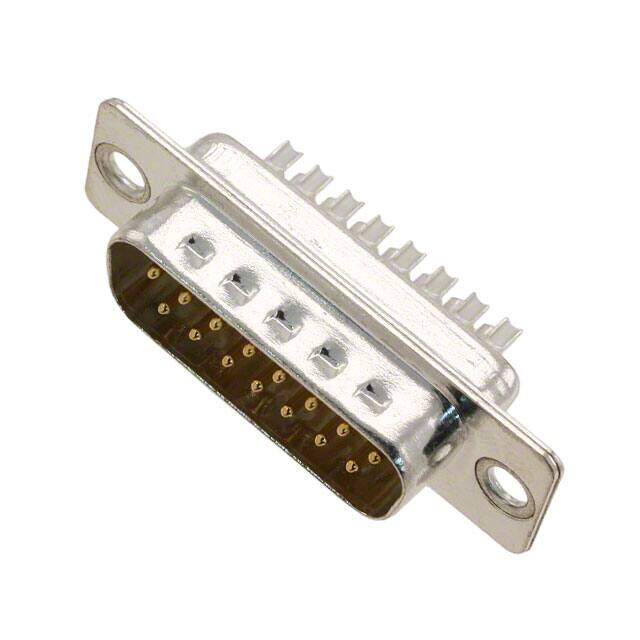

CONN D-SUB PLUG 15P SLDR CUP
PDF
/
Buying Options
Total Price: USD $7.17
Unit Price: USD $7.172
≥1 USD $7.172
≥10 USD $6.45392
≥100 USD $6.080096
≥500 USD $5.92416
≥1000 USD $5.768224
≥3000 USD $5.14463
Inventory: 117
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Material Flammability Rating UL94 V-0
Dimensions
Length 39.5mm
Height 12.5mm
Technical
Contact Design PREASSEM CONN
Shell Size, Connector Layout 2 DA A
Contact Form Machined
Withdrawl Force-Min 3.336 N
Insertion Force-Max 3.336 N
Body Plating Tin
Number of Ports 1
Connector Style D-Sub
Body/Shell Style RECEPTACLE
Flange Feature Housing/Shell (Unthreaded)
Wire Gauge 20 AWG
Contact Resistance 10mOhm
Working Voltage 125V
Empty Shell NO
UL Flammability Code 94V-0
Reference Standard UL
Shell Finish TIN
Current Rating 7A
Orientation Straight
Total Number of Contacts 15
Current Rating (Amps) 7.5A
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Signal
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating NOT SPECIFIED
Voltage - Rated DC 125V
Subcategory D Type Connectors
Gender Male
Number of Rows 2
Connector Type Plug, Male Pins
Termination Solder Cup
Number of Terminations 15
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Grounding Indents
Packaging Bulk
Operating Temperature -55°C~125°C
Physical
Shell Material, Finish Steel
Body Material Metal
Housing Material Polybutylene
Dielectric Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Contact Plating Gold
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 4 Weeks
