09670154715050
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description

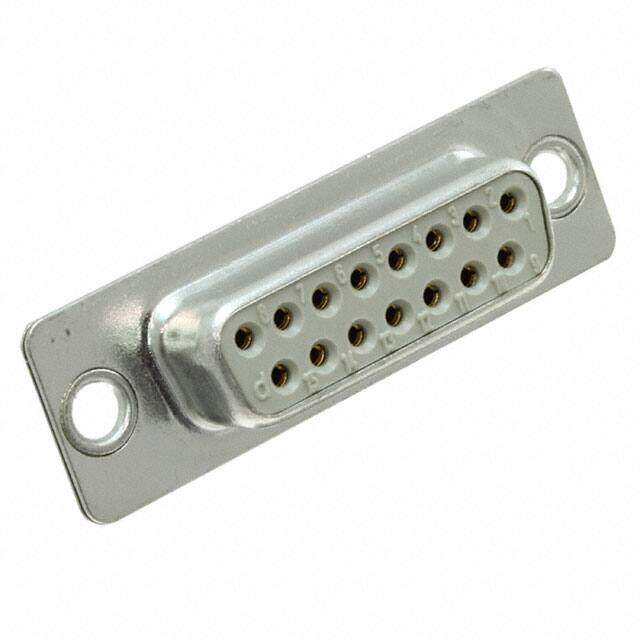

CONN D-SUB RCPT 15P STR SLDR CUP
PDF
/
Buying Options
Total Price: USD $8.22
Unit Price: USD $8.2192
≥1 USD $8.2192
≥10 USD $7.3964
≥100 USD $6.967136
≥500 USD $6.788672
≥1000 USD $6.610032
≥3000 USD $5.89541
Inventory: 121
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Contact Material Copper Alloy
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Dielectric Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Shell Material, Finish Steel
Technical
Operating Temperature -55°C~125°C
Packaging Bulk
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder Cup
Connector Type Receptacle, Female Sockets
Number of Positions 15
Number of Rows 2
Additional Feature ROHS COMPLIANT
Subcategory D Type Connectors
Contact Type Signal
Current Rating (Amps) 7.5A
Pitch 2.74mm
Total Number of Contacts 15
Current Rating 7A
Reference Standard UL
Contact Finish Gold or Gold-Palladium
Reliability COMMERCIAL
Body Length or Diameter 1.555 inch
Contact Resistance 10mOhm
Wire Gauge 20 AWG
Insulation Resistance 10000000000Ohm
Flange Feature Housing/Shell (Unthreaded)
Body/Shell Style PLUG
Dielectric Withstanding Voltage 1400VAC V
Connector Style D-Sub
Insertion Force-Max 3.336 N
Contact Form Machined
Shell Size, Connector Layout 2 DA A
Contact Design PREASSEM CONN
Dimensions
Contact Finish Thickness 30.0μin 0.76μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
