09670095664
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description

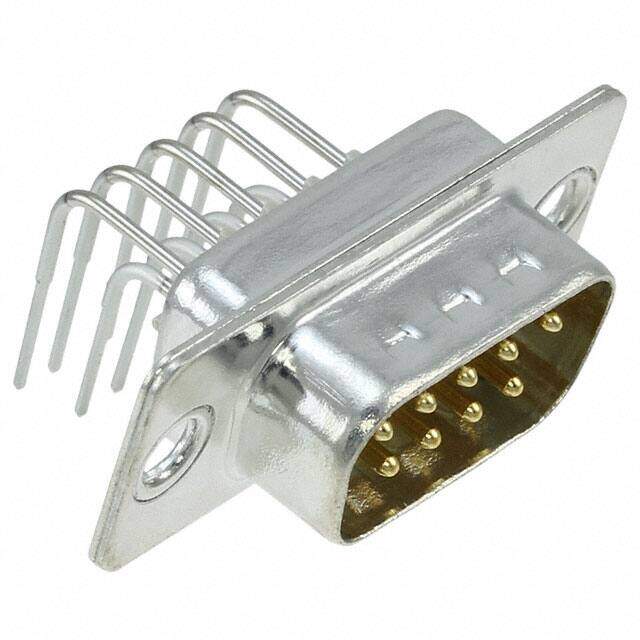

D-Sub Standard Connectors DSUB SV ML TSDP ANG-2.84 09P PL2
PDF
/
Buying Options
Total Price: USD $7.4
Unit Price: USD $7.4008
≥1 USD $7.4008
≥10 USD $6.6924
≥100 USD $6.322624
≥500 USD $6.168272
≥1000 USD $5.859832
≥3000 USD $5.24304
Inventory: 181
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Material Flammability Rating UL94 V-0
Dimensions
Length 31.2mm
Technical
Test Voltage 1kV
Backset Spacing 0.409 (10.40mm)
Shell Size, Connector Layout 1 DE E
Contact Form Machined
Withdrawl Force-Min 3.336 N
Insertion Force-Max 3.336 N
Number of Ports 1
Connector Style D-Sub
Body/Shell Style RECEPTACLE
Flange Feature Housing/Shell (Unthreaded)
Empty Shell NO
Mating Information MULTIPLE MATING PARTS AVAILABLE
PCB Contact Pattern STAGGERED
Number Of PCB Rows 2
Reference Standard UL
Shell Finish TIN
Current Rating 7.5A
Orientation Right Angle
Total Number of Contacts 9
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Signal
Filter Feature NO
IEC Conformance YES
DIN Conformance YES
MIL Conformance NO
Contact Finish - Mating NOT SPECIFIED
Subcategory D Type Connectors
Gender Male
Number of Rows 2
Number of Positions 9
Connector Type Plug, Male Pins
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Grounding Indents
Packaging Bulk
Operating Temperature -55°C~125°C
Physical
Shell Material, Finish Steel
Housing Material Polybutylene
Dielectric Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Plating Gold
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 9 Weeks
