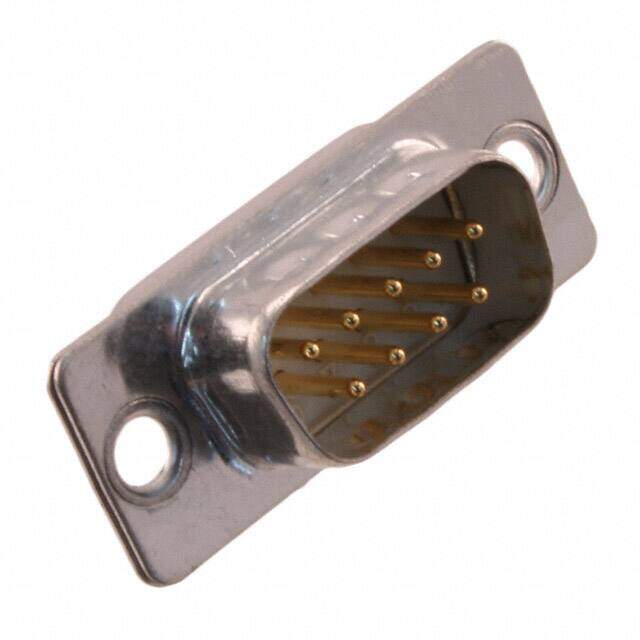

09670095615050
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description
CONN DSUB PLUG 9POS STR SLDR CUP
PDF
/
Buying Options
Total Price: USD $3.88
Unit Price: USD $3.8808
≥1 USD $3.8808
≥10 USD $3.5112
≥100 USD $3.317248
≥500 USD $3.236464
≥1000 USD $3.074632
≥3000 USD $2.849
Inventory: 89
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Physical
Contact Material Copper Alloy
Contact Plating Gold
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Dielectric Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Housing Material PBT
Shell Material, Finish Steel
Technical
Operating Temperature -55°C~125°C
Packaging Bulk
Feature Grounding Indents
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder Cup
Connector Type Plug, Male Pins
Number of Positions 9
Number of Rows 2
Gender Male
Contact Type Signal
Current Rating (Amps) 7.5A
Current Rating 7A
Contact Finish Gold or Gold-Palladium
Wire Gauge 20 AWG
Flange Feature Housing/Shell (Unthreaded)
Connector Style D-Sub
Contact Form Machined
Shell Size, Connector Layout 1 DE E
Dimensions
Contact Finish Thickness 30.0μin 0.76μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
