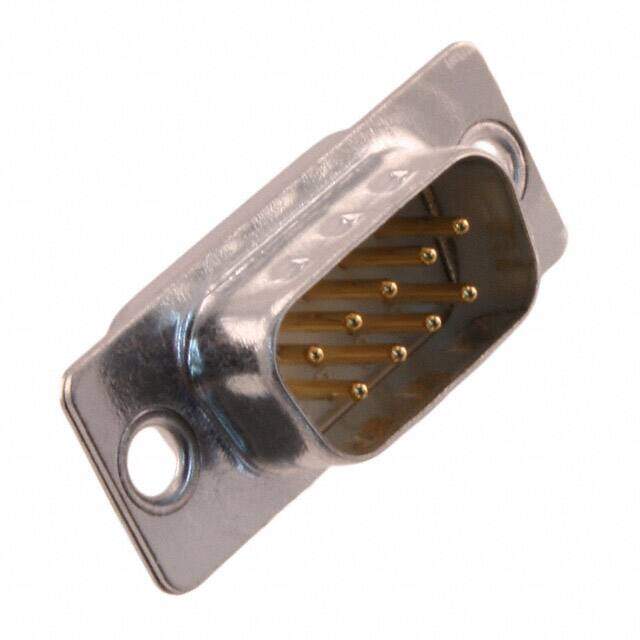

09670095615 image
Favorite
09670095615 image
Favorite

09670095615

HARTING
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / D-Sub Connectors
Description D-Sub Standard Connectors 9P MALE TRND SLDRCUP
PDF
/
Buying Options
Total Price: USD $5.4
Unit Price: USD $5.4032
≥1 USD $5.4032
≥10 USD $4.90248
≥100 USD $4.643584
≥500 USD $4.53552
≥1000 USD $4.319568
≥3000 USD $3.779626
Inventory: 142
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 4 Weeks

Physical

Contact Material Copper Alloy
Contact Plating Gold
Mount Free Hanging, Panel
Mounting Type Free Hanging (In-Line)
Shell Material Thermoplastic
Dielectric Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Housing Material Metal
Shell Material, Finish Steel

Technical

Operating Temperature -55°C~125°C
Packaging Bulk
Feature Grounding Indents
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 9
Termination Solder Cup
Connector Type Plug, Male Pins
Number of Rows 2
Gender Male
Subcategory D Type Connectors
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Signal
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 2.77mm
Total Number of Contacts 9
Orientation Straight
Depth 17mm
Current Rating 7.5A
Shell Finish TIN
Reference Standard UL
Mating Information MULTIPLE MATING PARTS AVAILABLE
Empty Shell NO
Wire Gauge 20 AWG
Flange Feature Housing/Shell (Unthreaded)
Body/Shell Style RECEPTACLE
Connector Style D-Sub
Number of Ports 1
Insertion Force-Max 3.336 N
Withdrawl Force-Min 3.336 N
Contact Form Machined
Shell Size, Connector Layout 1 DE E
Contact Design PREASSEM CONN
Test Voltage 1kV

Dimensions

Length 31.2mm
Width 12.5mm

Compliance

Material Flammability Rating UL94 V-0
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
