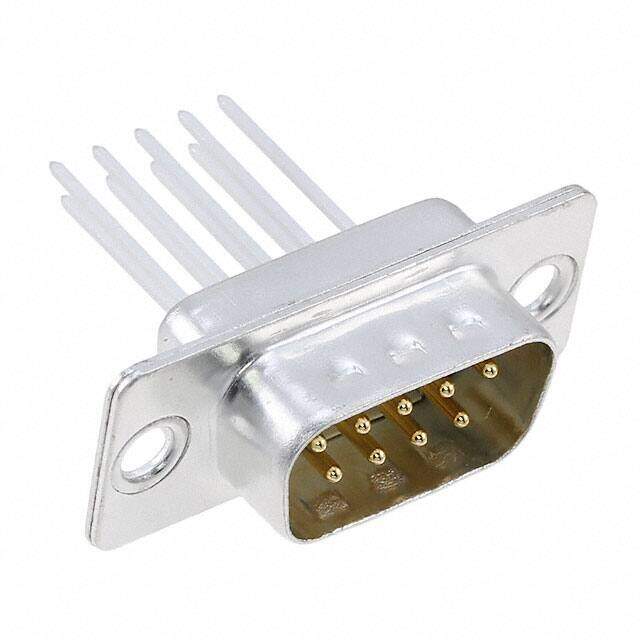

09670095607
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description
D-Sub Standard Connectors DSUB SV ML TWW STR 09P AU3
PDF
/
Buying Options
Total Price: USD $8.36
Unit Price: USD $8.36
≥1 USD $8.36
≥10 USD $7.52488
≥100 USD $7.088576
≥500 USD $6.906944
≥1000 USD $6.725136
≥3000 USD $5.99808
Inventory: 94
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Material Flammability Rating UL94 V-0
Dimensions
Width 12.5mm
Length 31.2mm
Technical
Test Voltage 1kV
Shell Size, Connector Layout 1 DE E
Withdrawl Force-Min 3.336 N
Insertion Force-Max 3.336 N
Number of Poles 9
Number of Ports 1
Connector Style D-Sub
Body/Shell Style RECEPTACLE
Flange Feature Housing/Shell (Unthreaded)
Rated Current (Signal) 7.5A
Empty Shell NO
Mating Information MULTIPLE MATING PARTS AVAILABLE
PCB Contact Pattern STAGGERED
Number Of PCB Rows 2
Reference Standard UL
Shell Finish TIN
Current Rating 7A
Orientation Straight
Total Number of Contacts 9
Pitch 2.74mm
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Signal
Filter Feature NO
IEC Conformance YES
DIN Conformance YES
MIL Conformance NO
Contact Finish - Mating NOT SPECIFIED
Subcategory D Type Connectors
Gender Male
Number of Rows 2
Connector Type Plug, Male Pins
Termination Wire Wrap
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Grounding Indents
Packaging Bulk
Operating Temperature -55°C~125°C
Physical
Shell Material, Finish Steel
Housing Material Polybutylene
Dielectric Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Mounting Type Panel Mount, Through Hole
Mount Panel
Contact Plating Gold
Contact Material Gold, Nickel
Supply Chain
Factory Lead Time 11 Weeks
