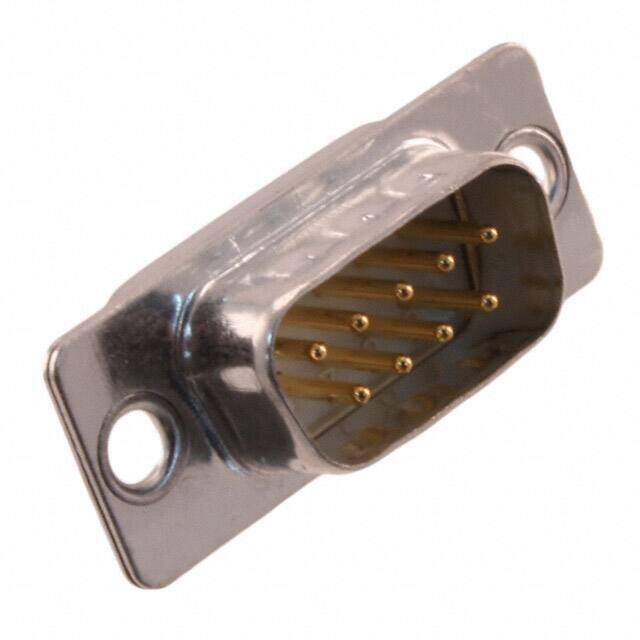

09670095604 image
Favorite
09670095604 image
Favorite

09670095604

HARTING
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / D-Sub Connectors
Description CONNECTOR, D-SUB, PLUG, T&D, 9WAY
PDF
/
Buying Options
Total Price: USD $5.58
Unit Price: USD $5.5792
≥1 USD $5.5792
≥10 USD $5.04504
≥100 USD $4.76608
≥500 USD $4.64992
≥1000 USD $4.417424
≥3000 USD $3.952406
Inventory: 387
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 4 Weeks

Physical

Contact Material Copper Alloy
Contact Plating Gold
Mount Free Hanging, Panel
Mounting Type Free Hanging (In-Line)
Dielectric Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Housing Material PBT
Body Material Metal
Shell Material, Finish Steel

Technical

Operating Temperature -55°C~125°C
Packaging Tray
Feature Grounding Indents
Pbfree Code yes
Contact Design PREASSEM CONN
Shell Size, Connector Layout 1 DE E
Contact Form Machined
Withdrawl Force-Min 3.336 N
Insertion Force-Max 3.336 N
Body Plating Tin
Number of Ports 1
Connector Style D-Sub
Body/Shell Style RECEPTACLE
Flange Feature Housing/Shell (Unthreaded)
Wire Gauge 20 AWG
Contact Resistance 10mOhm
Working Voltage 125V
Empty Shell NO
Reference Standard UL
Shell Finish TIN
Current Rating 7A
Depth 17mm
Orientation Straight
Total Number of Contacts 9
Pitch 2.77mm
Current Rating (Amps) 7.5A
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Signal
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating NOT SPECIFIED
Voltage - Rated DC 125V
Subcategory D Type Connectors
Gender Male
Number of Rows 2
Connector Type Plug, Male Pins
Termination Solder Cup
Number of Terminations 9
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active

Compliance

Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Material Flammability Rating UL94 V-0

Dimensions

Width 12.5mm
Length 31.2mm
Height 12.5mm
