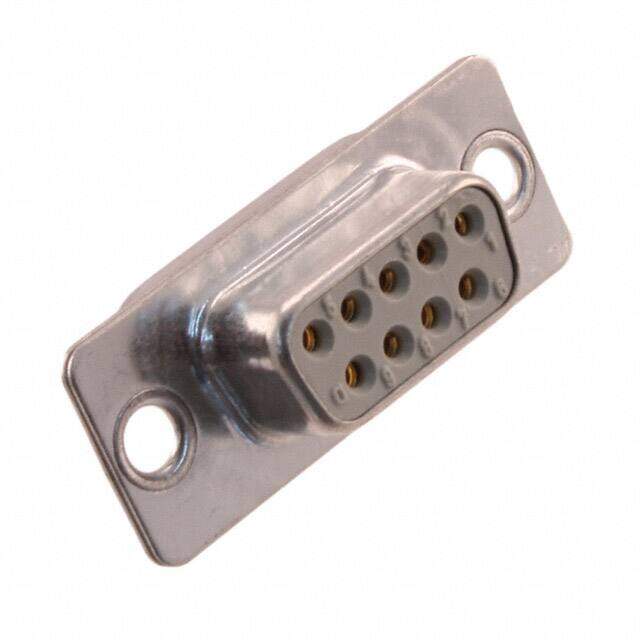

09670094755

HARTING
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / D-Sub Connectors
Description D-Sub Standard Connectors DSUB SV FE TSDP STR 09P AU2
PDF
/
Buying Options
Total Price: USD $6.1
Unit Price: USD $6.0984
≥1 USD $6.0984
≥10 USD $5.51496
≥100 USD $5.209952
≥500 USD $5.08288
≥1000 USD $4.828824
≥3000 USD $4.320483
Inventory: 248
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Material Flammability Rating UL94 V-0

Dimensions

Length 31.2mm

Technical

Test Voltage 1kV
Shell Size, Connector Layout 1 DE E
Contact Form Machined
Withdrawl Force-Min 3.336 N
Insertion Force-Max 3.336 N
Number of Ports 1
Connector Style D-Sub
Body/Shell Style PLUG
Flange Feature Housing/Shell (Unthreaded)
Empty Shell NO
Mating Information MULTIPLE MATING PARTS AVAILABLE
PCB Contact Pattern STAGGERED
Number Of PCB Rows 2
Reference Standard UL
Shell Finish TIN
Current Rating 7A
Depth 12.5mm
Orientation Straight
Total Number of Contacts 9
Pitch 2.74mm
Current Rating (Amps) 7.5A
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Signal
Filter Feature NO
IEC Conformance YES
DIN Conformance YES
MIL Conformance NO
Contact Finish - Mating NOT SPECIFIED
Subcategory D Type Connectors
Gender Receptacle
Number of Rows 2
Connector Type Receptacle, Female Sockets
Termination Solder
Number of Terminations 9
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Packaging Tray
Operating Temperature -55°C~125°C

Physical

Shell Material, Finish Steel
Housing Material Polybutylene
Dielectric Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Mounting Type Through Hole
Mount Through Hole
Contact Plating Gold
Contact Material Gold, Nickel
