09670094715050
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description

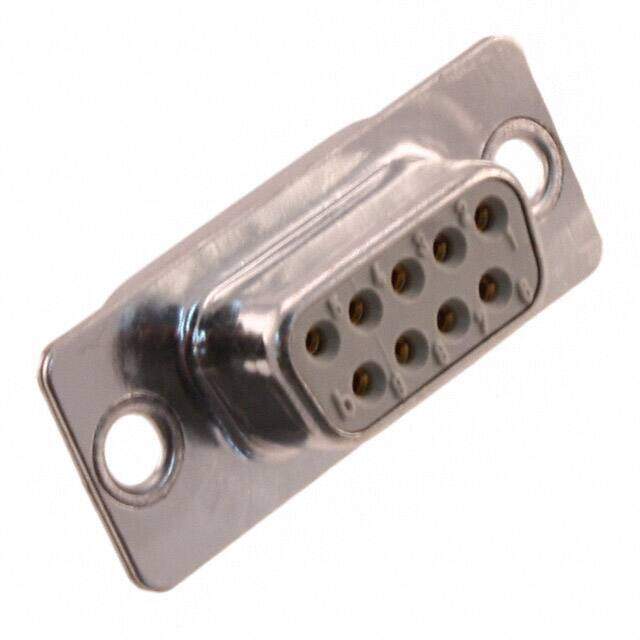

D-Sub Standard Connectors DSUB SV FE TSDC 09P AUS4
PDF
/
Buying Options
Total Price: USD $6.14
Unit Price: USD $6.1424
≥1 USD $6.1424
≥10 USD $5.55368
≥100 USD $5.24656
≥500 USD $5.118608
≥1000 USD $4.862704
≥3000 USD $4.35087
Inventory: 85
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Physical
Contact Material Copper Alloy
Contact Plating Gold
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Dielectric Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Housing Material PBT
Shell Material, Finish Steel
Technical
Operating Temperature -55°C~125°C
Packaging Bulk
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder Cup
Connector Type Receptacle, Female Sockets
Number of Positions 9
Number of Rows 2
Gender Receptacle
Contact Type Signal
Current Rating (Amps) 7.5A
Pitch 2.77mm
Orientation Straight
Contact Finish Gold or Gold-Palladium
Wire Gauge 20 AWG
Flange Feature Housing/Shell (Unthreaded)
Connector Style D-Sub
Contact Form Machined
Shell Size, Connector Layout 1 DE E
Dimensions
Contact Finish Thickness 30.0μin 0.76μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
