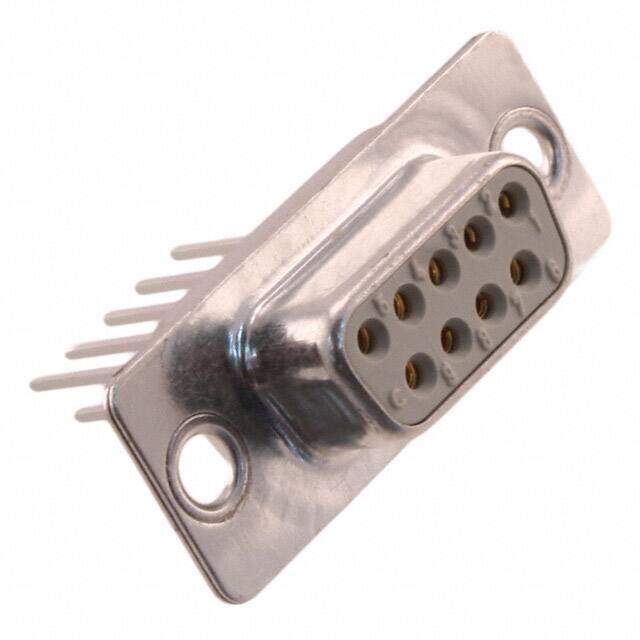

09670094707 image
Favorite
09670094707 image
Favorite

09670094707

HARTING
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / D-Sub Connectors
Description D-Sub Standard Connectors DSUB SV FE TWW STR 09P AU3
PDF
/
Buying Options
Total Price: USD $8.59
Unit Price: USD $8.5888
≥1 USD $8.5888
≥10 USD $7.73168
≥100 USD $7.283232
≥500 USD $7.096496
≥1000 USD $6.909672
≥3000 USD $6.162675
Inventory: 36
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 9 Weeks

Physical

Contact Material Copper Alloy
Contact Plating Gold
Mount Panel
Mounting Type Panel Mount, Through Hole
Dielectric Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Housing Material Polybutylene
Shell Material, Finish Steel

Technical

Operating Temperature -55°C~125°C
Packaging Bulk
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Wire Wrap
Connector Type Receptacle, Female Sockets
Number of Positions 9
Number of Rows 2
Gender Receptacle
Voltage - Rated 1kV
Subcategory D Type Connectors
Contact Finish - Mating NOT SPECIFIED
MIL Conformance NO
DIN Conformance YES
IEC Conformance YES
Filter Feature NO
Contact Type Signal
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 2.74mm
Total Number of Contacts 9
Orientation Straight
Depth 18mm
Current Rating 7.5A
Shell Finish TIN
Reference Standard UL
Number Of PCB Rows 2
PCB Contact Pattern STAGGERED
Mating Information MULTIPLE MATING PARTS AVAILABLE
Empty Shell NO
Flange Feature Housing/Shell (Unthreaded)
Body/Shell Style PLUG
Connector Style D-Sub
Number of Ports 1
Insertion Force-Max 3.336 N
Withdrawl Force-Min 3.336 N
Shell Size, Connector Layout 1 DE E
Test Voltage 1kV

Dimensions

Length 31.2mm
Width 12.5mm

Compliance

Material Flammability Rating UL94 V-0
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
