09670094704
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description

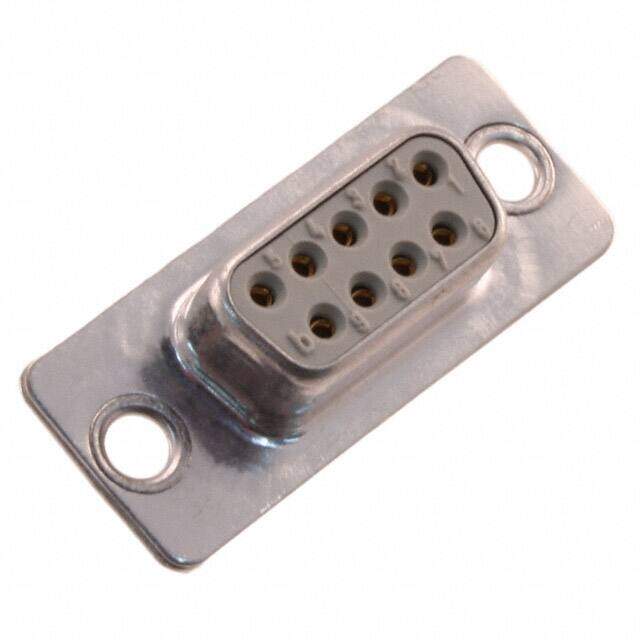

SOCKET, D T&D 9 WAY - More Details
PDF
/
Buying Options
Total Price: USD $6.12
Unit Price: USD $6.116
≥1 USD $6.116
≥10 USD $5.53344
≥100 USD $5.227552
≥500 USD $4.845104
≥1000 USD $4.335118
≥3000 USD $4.08012
Inventory: 399
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Material Copper Alloy
Contact Plating Gold
Mount Free Hanging, PCB, Panel
Mounting Type Free Hanging (In-Line)
Dielectric Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Housing Material Polybutylene
Body Material Metal, Steel
Shell Material, Finish Steel
Technical
Operating Temperature -40°C~85°C
Packaging Tray
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 9
Termination Solder Cup
Connector Type Receptacle, Female Sockets
Number of Rows 2
Gender Receptacle
Subcategory D Type Connectors
Voltage - Rated DC 125V
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Signal
Mixed Contacts NO
Option GENERAL PURPOSE
Current Rating (Amps) 7.5A
Pitch 2.74mm
Total Number of Contacts 9
Orientation Straight
Depth 17mm
Current Rating 7A
Shell Finish TIN
Reference Standard UL
Empty Shell NO
Working Voltage 125V
Contact Resistance 10mOhm
Wire Gauge 20 AWG
Flange Feature Housing/Shell (Unthreaded)
Body/Shell Style PLUG
Connector Style D-Sub
Number of Ports 1
Body Plating Tin
Insertion Force-Max 3.336 N
Withdrawl Force-Min 3.336 N
Contact Form Machined
Shell Size, Connector Layout 1 DE E
Contact Design PREASSEM CONN
Dimensions
Length 31.2mm
Width 12.5mm
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
