09665627811
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description

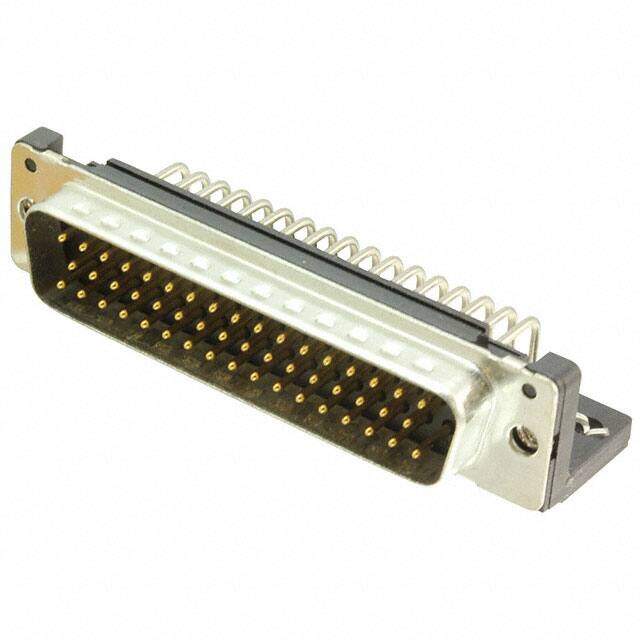

CONNECTOR, D-SUB, PLUG, SOLDER, R/A, 50P
PDF
/
Buying Options
Total Price: USD $17.24
Unit Price: USD $17.2392
≥1 USD $17.2392
≥10 USD $14.9424
≥100 USD $14.16272
≥500 USD $13.957328
≥1000 USD $12.315336
≥3000 USD $11.494314
Inventory: 610
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 15 Weeks
Physical
Contact Material Copper Alloy
Contact Plating Gold
Mount Through Hole
Mounting Type Through Hole, Right Angle
Dielectric Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Housing Material PBT
Body Material Metal
Shell Material, Finish Steel
Technical
Operating Temperature -55°C~125°C
Packaging Tray
Feature Board Lock, Grounding Indents
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Plug, Male Pins
Number of Positions 50
Number of Rows 3
Gender Male
Subcategory D Type Connectors
Contact Finish - Mating NOT SPECIFIED
MIL Conformance NO
DIN Conformance YES
IEC Conformance YES
Filter Feature NO
Contact Type Signal
Mixed Contacts NO
Option GENERAL PURPOSE
Current Rating (Amps) 7.5A
Pitch 2.54mm
Total Number of Contacts 50
Orientation Right Angle
Current Rating 7A
Shell Finish TIN
Reference Standard UL
Number Of PCB Rows 3
PCB Contact Pattern STAGGERED
UL Flammability Code 94V-0
Empty Shell NO
Body Depth 0.689 inch
Flange Feature Housing/Shell (M3)
Body/Shell Style RECEPTACLE
Connector Style D-Sub
Number of Ports 1
PCB Contact Row Spacing 2.8448 mm
Contact Form Machined
Shell Size, Connector Layout 5 DD D
Dimensions
Height 15.7mm
Length 67mm
Compliance
Material Flammability Rating UL94 V-0
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
