09665527611
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description

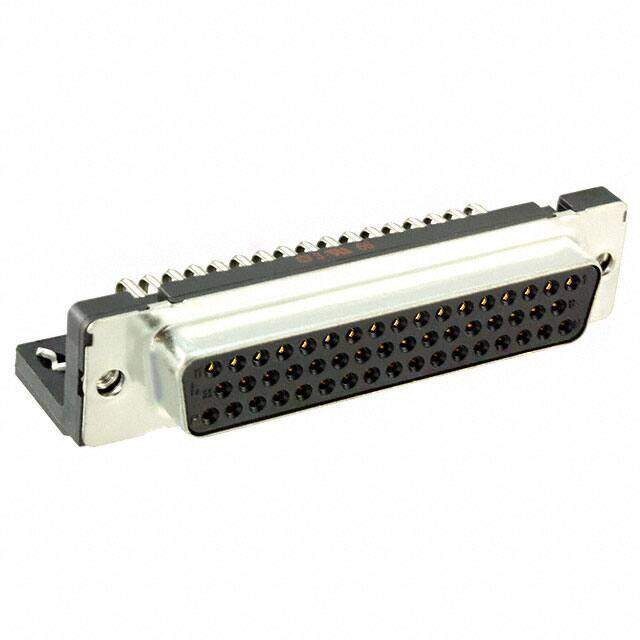

Standard D Sub Connector, Snap In, Ground Contact, Dd, Receptacle, 50, Metal Body, Solder
PDF
/
Buying Options
Total Price: USD $16.8
Unit Price: USD $16.7992
≥1 USD $16.7992
≥10 USD $14.56312
≥100 USD $13.802624
≥500 USD $13.602688
≥1000 USD $12.00232
≥3000 USD $11.202189
Inventory: 75
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 15 Weeks
Physical
Contact Material Copper Alloy
Contact Plating Gold
Mount Through Hole
Mounting Type Through Hole, Right Angle
Dielectric Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Housing Material Polybutylene
Body Material Metal
Shell Material, Finish Steel
Technical
Operating Temperature -55°C~125°C
Packaging Tray
Feature Board Lock
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Receptacle, Female Sockets
Number of Positions 50
Number of Rows 3
Gender Receptacle
Subcategory D Type Connectors
Contact Finish - Mating NOT SPECIFIED
MIL Conformance NO
DIN Conformance YES
IEC Conformance YES
Filter Feature NO
Contact Type Signal
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 2.54mm
Total Number of Contacts 50
Orientation Right Angle
Current Rating 6.5A
Shell Finish TIN
Reference Standard UL
Number Of PCB Rows 3
PCB Contact Pattern STAGGERED
Mating Information MULTIPLE MATING PARTS AVAILABLE
Body Breadth 0.606 inch
UL Flammability Code 94V-0
Empty Shell NO
Body Depth 0.689 inch
Flange Feature Housing/Shell (M3)
Body/Shell Style PLUG
Connector Style D-Sub
Number of Ports 1
Contact Form Stamped
Shell Size, Connector Layout 5 DD D
Backset Spacing 0.409 (10.40mm)
Dimensions
Height 16.4mm
Length 67mm
Compliance
Material Flammability Rating UL94 V-0
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
