09665526616
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description

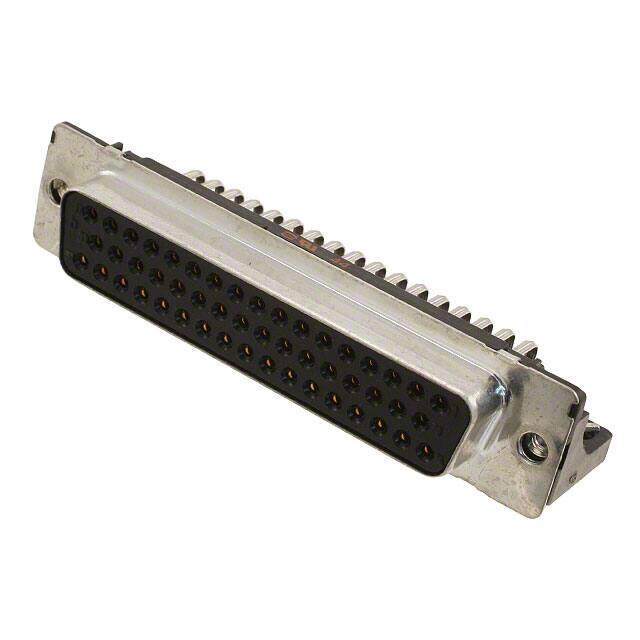

D-Sub Standard Connectors 50P R/A DSUB FEMALE
PDF
/
Buying Options
Total Price: USD $15.95
Unit Price: USD $15.9544
≥1 USD $15.9544
≥10 USD $13.83096
≥100 USD $13.108832
≥500 USD $12.918752
≥1000 USD $11.398816
≥3000 USD $10.638918
Inventory: 314
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Material Copper Alloy
Contact Plating Gold
Mount Through Hole
Mounting Type Through Hole, Right Angle
Dielectric Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Housing Material PBT
Body Material Metal
Shell Material, Finish Steel
Technical
Operating Temperature -55°C~125°C
Packaging Bulk
Feature Board Lock
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Receptacle, Female Sockets
Number of Positions 50
Number of Rows 3
Gender Receptacle
Subcategory D Type Connectors
MIL Conformance NO
DIN Conformance YES
IEC Conformance YES
Filter Feature NO
Contact Type Signal
Mixed Contacts NO
Option GENERAL PURPOSE
Current Rating (Amps) 6.5A
Pitch 2.54mm
Total Number of Contacts 50
Orientation Right Angle
Current Rating 6A
Shell Finish TIN
Reference Standard UL
Number Of PCB Rows 3
PCB Contact Pattern STAGGERED
Mating Information MULTIPLE MATING PARTS AVAILABLE
Body Breadth 0.606 inch
UL Flammability Code 94V-0
Empty Shell NO
Body Depth 0.598 inch
Flange Feature Housing/Shell (4-40)
Body/Shell Style PLUG
Connector Style D-Sub
Number of Ports 1
Contact Form Stamped
Shell Size, Connector Layout 5 DD D
Backset Spacing 0.409 (10.40mm)
Test Voltage 1kV
Dimensions
Height 15.4mm
Length 67mm
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
