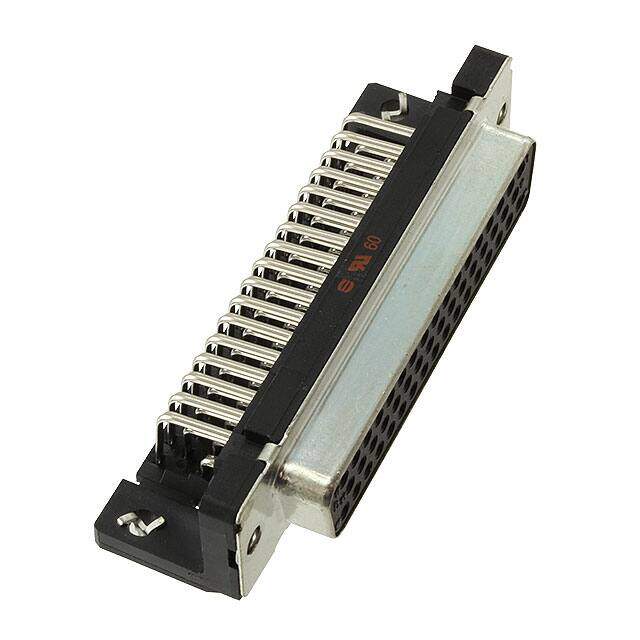

09665526612
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description
Conn D-Subminiature SKT 50 POS 2.76mm Solder RA Thru-Hole 50 Terminal 1 Port
PDF
/
Buying Options
Total Price: USD $20.07
Unit Price: USD $20.066308
≥1 USD $20.066308
≥10 USD $18.930484
≥100 USD $17.858945
≥500 USD $16.848061
≥1000 USD $15.894401
Inventory: 6946
Minimum: 1
-
+
Technical Details
Technical
Filter Feature NO
IEC Conformance YES
DIN Conformance YES
MIL Conformance NO
Subcategory D Type Connectors
Gender Receptacle
Number of Rows 3
Connector Type Receptacle, Female Sockets
ECCN Code EAR99
Termination Solder
Number of Terminations 50
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Board Lock
Packaging Bulk
Operating Temperature -55°C~125°C
Backset Spacing 0.409 (10.40mm)
Shell Size, Connector Layout 5 DD D
Contact Form Stamped
Number of Ports 1
Connector Style D-Sub
Plating Tin
Body/Shell Style PLUG
Flange Feature Housing/Shell (4-40)
Empty Shell NO
UL Flammability Code 94V-0
Body Breadth 0.606 inch
PCB Contact Pattern STAGGERED
Number Of PCB Rows 3
Reference Standard UL
Shell Finish TIN
Current Rating 6A
Depth 15.4mm
Orientation Right Angle
Total Number of Contacts 50
Pitch 2.54mm
Current Rating (Amps) 6.5A
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Signal
Physical
Shell Material, Finish Steel
Housing Material Polybutylene
Dielectric Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Plating Gold
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 15 Weeks
Compliance
RoHS Status ROHS3 Compliant
Radiation Hardening No
Material Flammability Rating UL94 V-0
Dimensions
Width 17.5mm
Length 67mm
Height 15.4mm
