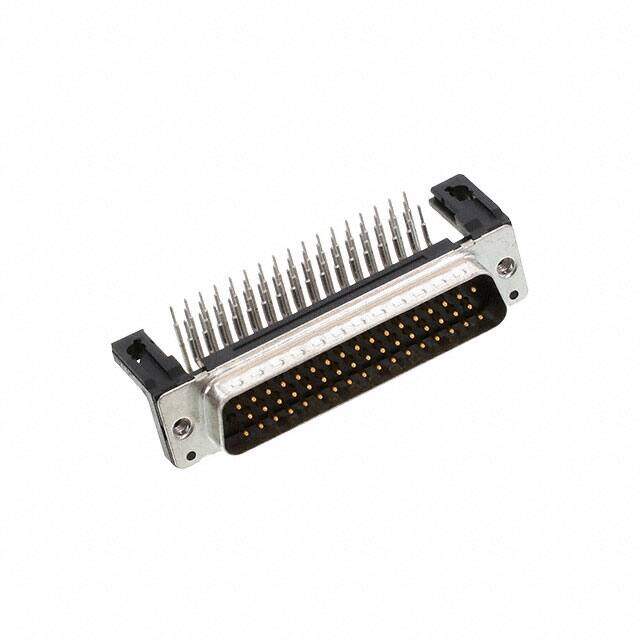

09665226801
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description
D-Sub Standard Connectors DSUB SV ML SSDP ANG87-254 50P AU2
PDF
/
Buying Options
Total Price: USD $16.28
Unit Price: USD $16.281543
≥1 USD $16.281543
≥10 USD $15.359941
≥100 USD $14.490509
≥500 USD $13.670295
≥1000 USD $12.896506
Inventory: 9010
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Length - Termination 0.114 inch
Technical
Backset Spacing 0.409 (10.40mm)
Shell Size, Connector Layout 5 DD D
Contact Form Machined
Mating Contact Row Spacing 0.112 inch
PCB Contact Row Spacing 2.54 mm
Connector Style D-Sub
Dielectric Withstanding Voltage 1000VAC V
Body/Shell Style RECEPTACLE
Mating Contact Pitch 0.109 inch
Flange Feature Housing/Shell (M3)
Insulation Resistance 10000000000Ohm
Contact Resistance 10mOhm
Body Depth 0.689 inch
Empty Shell NO
UL Flammability Code 94V-0
Body Breadth 0.618 inch
PCB Contact Pattern STAGGERED
Number Of PCB Rows 3
Reference Standard UL
Shell Finish TIN
Terminal Pitch 2.7686mm
Total Number of Contacts 50
Current Rating (Amps) 7.5A
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Signal
Filter Feature NO
IEC Conformance YES
DIN Conformance YES
MIL Conformance NO
Contact Finish - Mating NOT SPECIFIED
Subcategory D Type Connectors
Additional Feature STANDARDS: DIN 41652; IEC 60807
Number of Rows 3
Number of Positions 50
Connector Type Plug, Male Pins
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Grounding Indents
Packaging Bulk
Operating Temperature -55°C~125°C
Physical
Shell Material, Finish Steel
Housing Material PBT
Dielectric Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 15 Weeks
