09665217701
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description

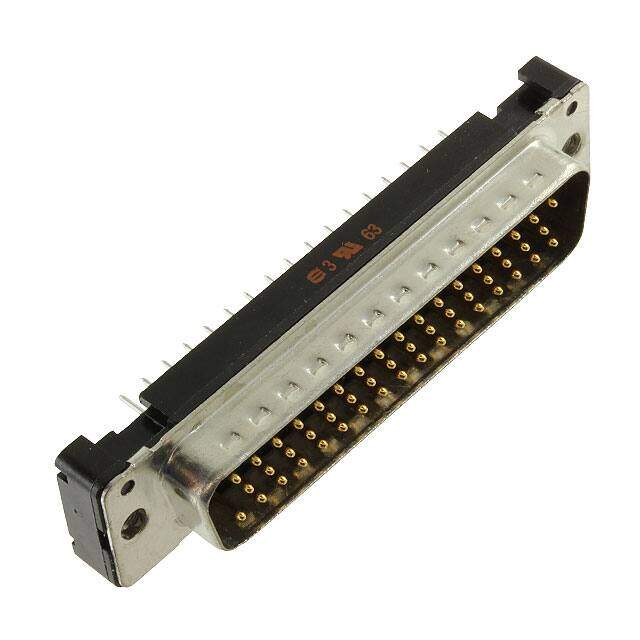

Connectors; D-Sub; Standard; DSUB SV ML SSDP STR 50P AU3
PDF
/
Buying Options
Total Price: USD $12.78
Unit Price: USD $12.7776
≥1 USD $12.7776
≥10 USD $11.32736
≥100 USD $10.891936
≥500 USD $10.456336
≥1000 USD $9.875448
≥3000 USD $9.004054
Inventory: 124
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Technical
Shell Size, Connector Layout 5 DD D
Contact Form Machined
Connector Style D-Sub
Flange Feature Housing/Shell (M3)
Current Rating (Amps) 7.5A
Contact Type Signal
Number of Rows 3
Min Operating Temperature -55°C
Max Operating Temperature 125°C
Number of Positions 50
Connector Type Plug, Male Pins
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Grounding Indents
Packaging Bulk
Operating Temperature -55°C~125°C
Physical
Shell Material, Finish Steel
Housing Material PBT
Dielectric Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Mounting Type Through Hole
Mount Through Hole
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 15 Weeks
