09665127601
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description

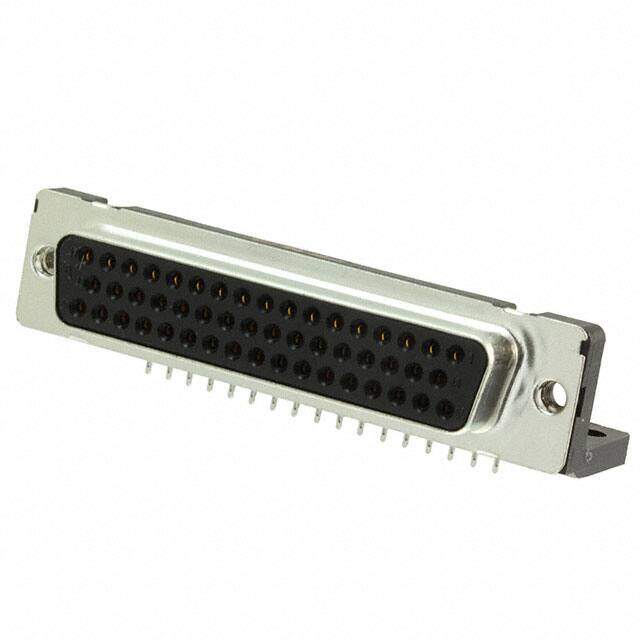

D Sub Connector, Right Angle, D Sub Connectors, DD, Receptacle, 50, Steel, Solder RoHS Compliant: Yes
PDF
/
Buying Options
Total Price: USD $15.75
Unit Price: USD $15.752
≥1 USD $15.752
≥10 USD $13.65232
≥100 USD $12.939872
≥500 USD $12.752432
≥1000 USD $11.252208
≥3000 USD $10.502061
Inventory: 36
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Material Flammability Rating UL94 V-0
Dimensions
Width 16.4mm
Length 67mm
Height 15.4mm
Technical
Backset Spacing 0.409 (10.40mm)
Shell Size, Connector Layout 5 DD D
Contact Form Stamped
Number of Ports 1
Connector Style D-Sub
Body/Shell Style PLUG
Flange Feature Housing/Shell (M3)
Body Depth 0.689 inch
Empty Shell NO
UL Flammability Code 94V-0
Body Breadth 0.606 inch
Mating Information MULTIPLE MATING PARTS AVAILABLE
PCB Contact Pattern STAGGERED
Number Of PCB Rows 3
Reference Standard UL
Shell Finish TIN
Current Rating 6A
Orientation Right Angle
Total Number of Contacts 50
Pitch 2.54mm
Current Rating (Amps) 6.5A
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Signal
Filter Feature NO
IEC Conformance YES
DIN Conformance YES
MIL Conformance NO
Contact Finish - Mating NOT SPECIFIED
Subcategory D Type Connectors
Gender Receptacle
Number of Rows 3
Number of Positions 50
Connector Type Receptacle, Female Sockets
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Packaging Bulk
Operating Temperature -55°C~125°C
Physical
Shell Material, Finish Steel
Housing Material Polybutylene
Dielectric Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 15 Weeks
