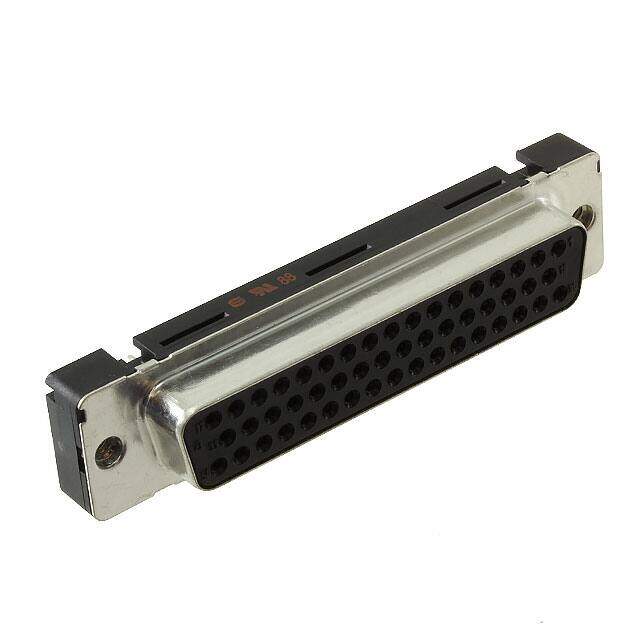

09665116502
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description
D-Sub Standard Connectors DSUB SV FEM SSDP STR 50P AU2
PDF
/
Buying Options
Total Price: USD $13.31
Unit Price: USD $13.3056
≥1 USD $13.3056
≥10 USD $11.78936
≥100 USD $11.33616
≥500 USD $10.882784
≥1000 USD $10.278224
≥3000 USD $9.371331
Inventory: 304
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Material Copper Alloy
Mount Through Hole
Mounting Type Through Hole
Dielectric Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Housing Material PBT
Shell Material, Finish Steel
Technical
Operating Temperature -55°C~125°C
Packaging Tray
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Receptacle, Female Sockets
Number of Positions 50
Number of Rows 3
Gender Receptacle
Additional Feature STANDARDS: DIN 41652; IEC 60807
Subcategory D Type Connectors
Contact Finish - Mating NOT SPECIFIED
MIL Conformance NO
DIN Conformance YES
IEC Conformance YES
Filter Feature NO
Contact Type Signal
Mixed Contacts NO
Option GENERAL PURPOSE
Current Rating (Amps) 6.5A
Total Number of Contacts 50
Terminal Pitch 2.7686mm
Shell Finish TIN
Reference Standard UL
Number Of PCB Rows 3
PCB Contact Pattern STAGGERED
Mating Information MULTIPLE MATING PARTS AVAILABLE
Body Breadth 0.606 inch
UL Flammability Code 94V-0
Empty Shell NO
Body Depth 0.244 inch
Contact Resistance 10mOhm
Insulation Resistance 10000000000Ohm
Flange Feature Housing/Shell (4-40)
Mating Contact Pitch 0.109 inch
Body/Shell Style PLUG
Dielectric Withstanding Voltage 1000VAC V
Connector Style D-Sub
PCB Contact Row Spacing 2.8448 mm
Mating Contact Row Spacing 0.112 inch
Contact Form Stamped
Shell Size, Connector Layout 5 DD D
Dimensions
Length - Termination 0.122 inch
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Lead Free Lead Free
