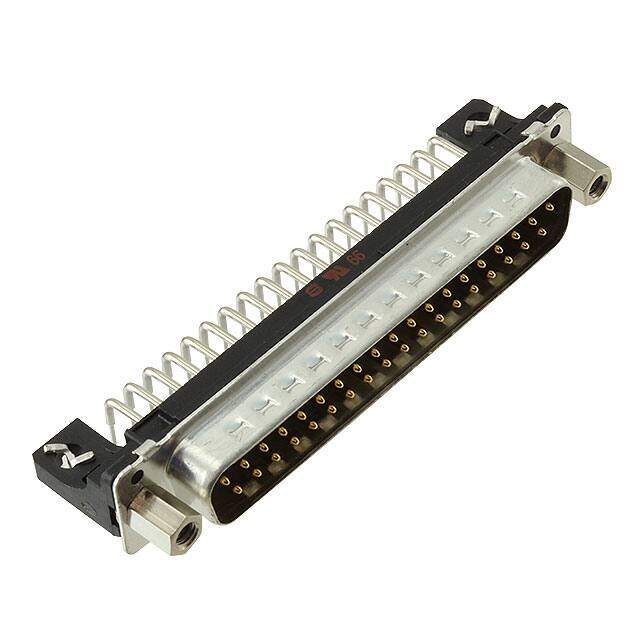

D-Sub Standard Connectors DSUB SV ML SSDP ANG36-254 37P AU2
PDF
/
Buying Options
Total Price: USD $17.49
Unit Price: USD $17.491778
≥1 USD $17.491778
≥10 USD $16.501681
≥100 USD $15.567615
≥500 USD $14.686434
≥1000 USD $13.855124
Inventory: 7089
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Width 12.5mm
Length 69.4mm
Technical
Shell Size, Connector Layout 4 DC C
Contact Form Machined
Withdrawl Force-Min 3.336 N
Insertion Force-Max 3.336 N
Connector Style D-Sub
Dielectric Withstanding Voltage 1000VAC V
Body/Shell Style RECEPTACLE
Flange Feature Mating Side, Female Screwlock (4-40)
Insulation Resistance 10000000000Ohm
Contact Resistance 10mOhm
Empty Shell NO
UL Flammability Code 94V-0
PCB Contact Pattern STAGGERED
Number Of PCB Rows 2
Reference Standard UL
Shell Finish TIN
Current Rating 6.5A
Depth 20.2mm
Orientation Right Angle
Total Number of Contacts 37
Pitch 2.76mm
Current Rating (Amps) 7.5A
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Signal
Filter Feature NO
IEC Conformance YES
DIN Conformance YES
MIL Conformance NO
Contact Finish - Mating NOT SPECIFIED
Subcategory D Type Connectors
HTS Code 8536.69.40.30
Gender Male
Number of Rows 2
Number of Positions 37
Connector Type Plug, Male Pins
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Board Lock, Grounding Indents
Packaging Bulk
Operating Temperature -55°C~125°C
Physical
Shell Material, Finish Steel
Housing Material PBT
Dielectric Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 15 Weeks
