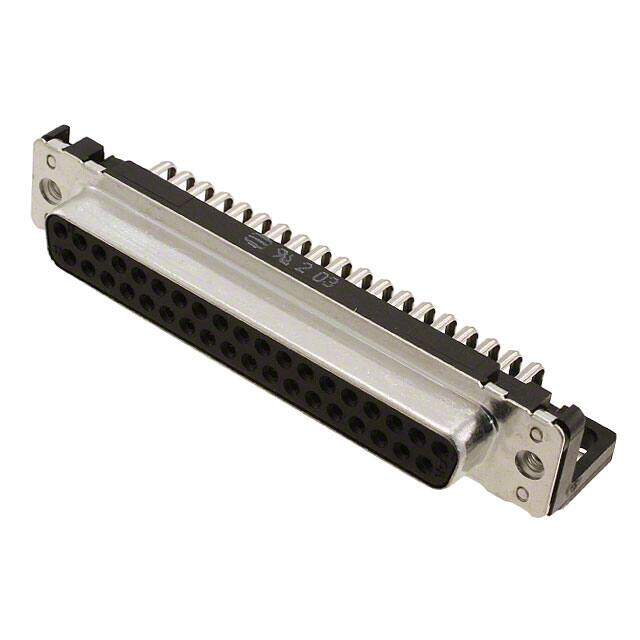

09664526612
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description
CONN D-SUB RCPT 37POS R/A SOLDER
PDF
/
Buying Options
Total Price: USD $12.87
Unit Price: USD $12.8656
≥1 USD $12.8656
≥10 USD $11.40128
≥100 USD $10.96304
≥500 USD $10.524448
≥1000 USD $9.939776
≥3000 USD $9.062698
Inventory: 99
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Material Copper Alloy
Contact Plating Gold
Mount Through Hole
Mounting Type Through Hole, Right Angle
Material Steel
Dielectric Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Body Material Metal
Technical
Operating Temperature -55°C~125°C
Packaging Bulk
Feature Board Lock
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 37
Termination Solder
ECCN Code EAR99
Connector Type Receptacle, Female Sockets
Number of Rows 2
Gender Receptacle
HTS Code 8536.69.40.30
Subcategory D Type Connectors
Voltage - Rated DC 250V
Contact Finish - Mating NOT SPECIFIED
MIL Conformance NO
DIN Conformance YES
IEC Conformance YES
Filter Feature NO
Contact Type Signal
Mixed Contacts NO
Option GENERAL PURPOSE
Current Rating (Amps) 6.5A
Pitch 2.54mm
Total Number of Contacts 37
Orientation Right Angle
Current Rating 6A
Shell Finish TIN
Reference Standard UL
Voltage - Rated AC 1kV
Number Of PCB Rows 2
PCB Contact Pattern STAGGERED
UL Flammability Code 94V-0
Empty Shell NO
Body Depth 0.583 inch
Working Voltage 250V
Flange Feature Housing/Shell (4-40)
Body/Shell Style PLUG
Connector Style D-Sub
Number of Ports 1
Body Plating Tin
Insertion Force-Max 3.336 N
Withdrawl Force-Min 3.336 N
Contact Form Stamped
Shell Size, Connector Layout 4 DC C
Backset Spacing 0.409 (10.40mm)
Test Voltage 1kV
Dimensions
Height 12.5mm
Length 69.7mm
Width 13.6mm
Compliance
Material Flammability Rating UL94 V-0
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
