09664516512
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description

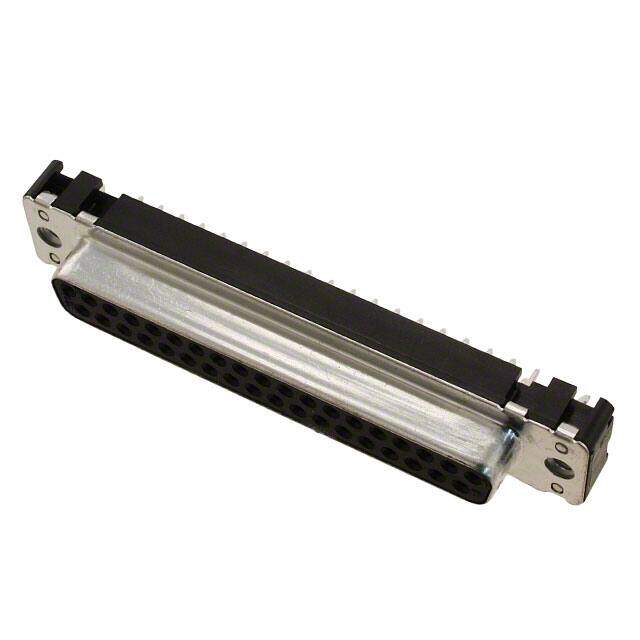

CONN D-SUB RCPT 37POS VERT SLDR
PDF
/
Buying Options
Total Price: USD $10.23
Unit Price: USD $10.2256
≥1 USD $10.2256
≥10 USD $9.064
≥100 USD $8.715872
≥500 USD $8.367216
≥1000 USD $7.902312
≥3000 USD $7.205053
Inventory: 100
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Material Copper Alloy
Contact Plating Gold
Mount Through Hole
Mounting Type Through Hole
Dielectric Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Housing Material Polybutylene
Body Material Metal
Shell Material, Finish Steel
Technical
Operating Temperature -55°C~125°C
Packaging Bulk
Feature Board Lock
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 37
Termination Solder
Connector Type Receptacle, Female Sockets
Number of Rows 2
Gender Receptacle
Voltage - Rated DC 250V
Contact Finish - Mating NOT SPECIFIED
MIL Conformance NO
DIN Conformance YES
IEC Conformance YES
Filter Feature NO
Contact Type Signal
Mixed Contacts NO
Option GENERAL PURPOSE
Current Rating (Amps) 6.5A
Pitch 2.76mm
Total Number of Contacts 37
Orientation Straight
Depth 12.5mm
Current Rating 6A
UL Flammability Code 94V-0
Empty Shell NO
Working Voltage 250V
Flange Feature Housing/Shell (4-40)
Connector Style D-Sub
Number of Ports 1
Body Plating Tin
Contact Form Stamped
Shell Size, Connector Layout 4 DC C
Test Voltage 1kV
Dimensions
Length 69.7mm
Compliance
Material Flammability Rating UL94 V-0
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
