09664287700
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description

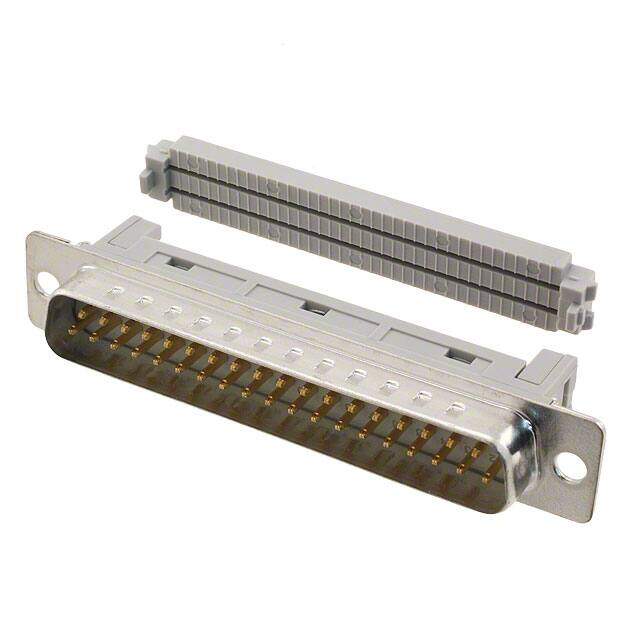

PLUG, D, IDC, T&D, 37WAY - More Details
PDF
/
Buying Options
Total Price: USD $14.08
Unit Price: USD $14.08
≥1 USD $14.08
≥10 USD $12.2056
≥100 USD $11.56848
≥500 USD $11.400928
≥1000 USD $10.059632
≥3000 USD $9.388966
Inventory: 143
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Contact Material Copper Alloy
Contact Plating Gold
Mount Panel
Mounting Type Panel Mount
Dielectric Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Housing Material Polybutylene
Body Material Metal
Shell Material, Finish Steel
Technical
Packaging Bulk
Feature Feed Through, Grounding Indents
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 37
Termination IDC, Ribbon Cable
ECCN Code EAR99
Connector Type Plug, Male Pins
Max Operating Temperature 125°C
Min Operating Temperature -55°C
Number of Rows 2
Gender Male
HTS Code 8536.69.40.30
Subcategory D Type Connectors
Contact Finish - Mating NOT SPECIFIED
MIL Conformance NO
DIN Conformance YES
IEC Conformance YES
Filter Feature NO
Contact Type Signal
Mixed Contacts NO
Option GENERAL PURPOSE
Current Rating (Amps) 2A
Total Number of Contacts 37
Orientation Right Angle
Depth 12.55mm
Shell Finish TIN
Reference Standard UL, CSA
Lead Pitch 2.77mm
Mating Information MULTIPLE MATING PARTS AVAILABLE
Body Breadth 0.509 inch
UL Flammability Code 94V-0
Empty Shell NO
Flange Feature Housing/Shell (Unthreaded)
Body/Shell Style RECEPTACLE
Connector Style D-Sub
Number of Ports 1
Shell Size, Connector Layout 4 DC C
Contact Design PREASSEM CONN
Dimensions
Length 69.4mm
Compliance
Material Flammability Rating UL94 V-0
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
