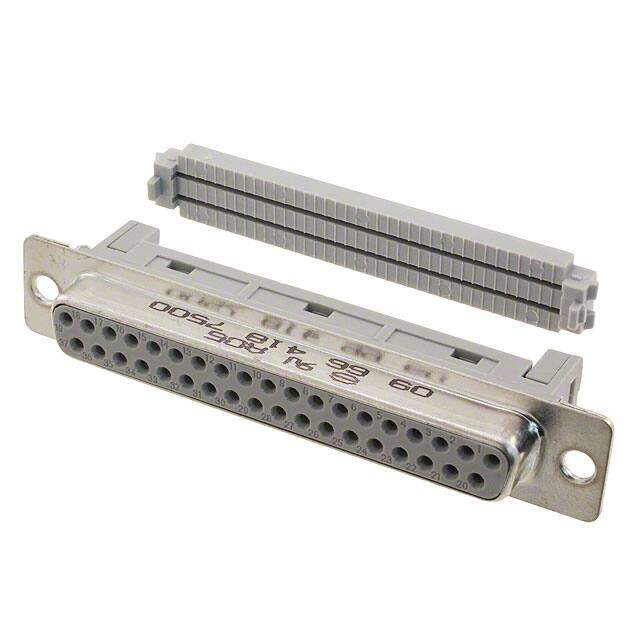

09664187500
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description
SOCKET, D, IDC, T&D, 37WAY - More Details
PDF
/
Buying Options
Total Price: USD $15.14
Unit Price: USD $15.136
≥1 USD $15.136
≥10 USD $13.11904
≥100 USD $12.434048
≥500 USD $12.253824
≥1000 USD $10.812208
≥3000 USD $10.091418
Inventory: 32
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Material Flammability Rating UL94 V-0
Dimensions
Width 17.1mm
Length 69.4mm
Technical
Contact Design PREASSEM CONN
Shell Size, Connector Layout 4 DC C
Number of Ports 1
Connector Style D-Sub
Body/Shell Style PLUG
Flange Feature Housing/Shell (Unthreaded)
Empty Shell NO
UL Flammability Code 94V-0
Body Breadth 0.509 inch
Mating Information MULTIPLE MATING PARTS AVAILABLE
Lead Pitch 2.77mm
Reference Standard UL, CSA
Shell Finish TIN
Current Rating 2A
Depth 18.2mm
Orientation Right Angle
Total Number of Contacts 37
Pitch 2.77mm
Current Rating (Amps) 2A
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Signal
Filter Feature NO
IEC Conformance YES
DIN Conformance YES
MIL Conformance NO
Contact Finish - Mating NOT SPECIFIED
Subcategory D Type Connectors
HTS Code 8536.69.40.30
Gender Receptacle
Number of Rows 2
Min Operating Temperature -55°C
Max Operating Temperature 125°C
Connector Type Receptacle, Female Sockets
ECCN Code EAR99
Termination IDC, Ribbon Cable
Number of Terminations 37
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Feed Through
Packaging Bulk
Physical
Shell Material, Finish Steel
Body Material Metal
Housing Material Polybutylene
Dielectric Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Mounting Type Panel Mount
Mount Panel
Contact Plating Gold
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 10 Weeks
