09664186500
RoHS
RoHS compliant
RoHS compliantPackage Metal
Category Connectors, Interconnects / D-Sub Connectors
Description

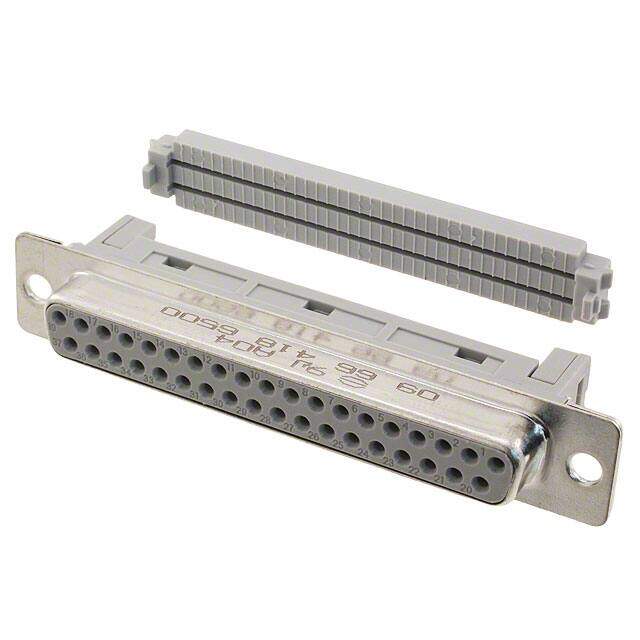

D-Sub Standard Connectors D-SUB 37F-IDC
PDF
/
Buying Options
Total Price: USD $15.87
Unit Price: USD $15.8664
≥1 USD $15.8664
≥10 USD $13.75
≥100 USD $13.032096
≥500 USD $12.843072
≥1000 USD $11.3322
≥3000 USD $10.57672
Inventory: 79
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Width 12.55mm
Length 69.4mm
Technical
Contact Design PREASSEM CONN
Shell Size, Connector Layout 4 DC C
Connector Style D-Sub
Dielectric Withstanding Voltage 1000VAC V
Body/Shell Style PLUG
Flange Feature Housing/Shell (Unthreaded)
Insulation Resistance 1000000000Ohm
Rated Current (Signal) 1A
Empty Shell NO
UL Flammability Code 94V-0
Body Breadth 0.509 inch
Mating Information MULTIPLE MATING PARTS AVAILABLE
Reference Standard UL, CSA
Shell Finish TIN
Current Rating 2A
Depth 18.2mm
Orientation Right Angle
Total Number of Contacts 37
Pitch 2.77mm
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Signal
Filter Feature NO
IEC Conformance YES
DIN Conformance YES
MIL Conformance NO
Contact Finish - Mating NOT SPECIFIED
Subcategory D Type Connectors
Voltage - Rated 32V
Gender Receptacle
Number of Rows 2
Min Operating Temperature -55°C
Max Operating Temperature 125°C
Number of Positions 37
Connector Type Receptacle, Female Sockets
Termination IDC, Ribbon Cable
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Feed Through
Packaging Bulk
Physical
Shell Material, Finish Steel
Housing Material PBT
Dielectric Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Material Liquid Crystal Polymer, Polymer
Package / Case Metal
Mounting Type Panel Mount
Mount Panel
Contact Plating Gold
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 4 Weeks
