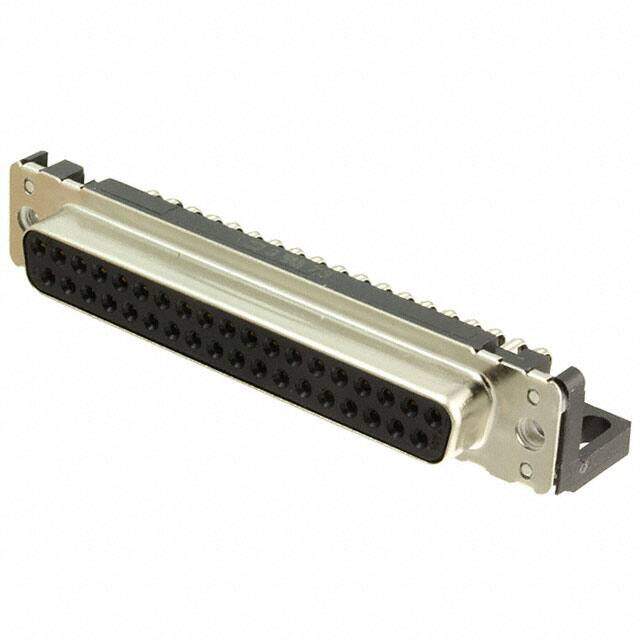

09664127601
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description
D-Sub Standard Connectors 37P DSUB R/A FEMALE STAMPED SOLDER PIN
PDF
/
Buying Options
Total Price: USD $10.3
Unit Price: USD $10.3048
≥1 USD $10.3048
≥10 USD $9.13352
≥100 USD $8.7824
≥500 USD $8.431104
≥1000 USD $7.962768
≥3000 USD $7.260176
Inventory: 43
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Width 13.6mm
Length 69.7mm
Technical
Backset Spacing 0.409 (10.40mm)
Shell Size, Connector Layout 4 DC C
Contact Form Stamped
Number of Ports 1
Connector Style D-Sub
Flange Feature Housing/Shell (M3)
Number of Contacts 37
Orientation Right Angle
Pitch 2.76mm
Current Rating (Amps) 6.5A
Contact Type Signal
Gender Receptacle
Number of Rows 2
Min Operating Temperature -55°C
Max Operating Temperature 125°C
Number of Positions 37
Connector Type Receptacle, Female Sockets
Termination Solder
Number of Terminations 37
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Packaging Bulk
Operating Temperature -55°C~125°C
Physical
Shell Material, Finish Steel
Housing Material Polybutylene
Dielectric Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 7 Weeks
