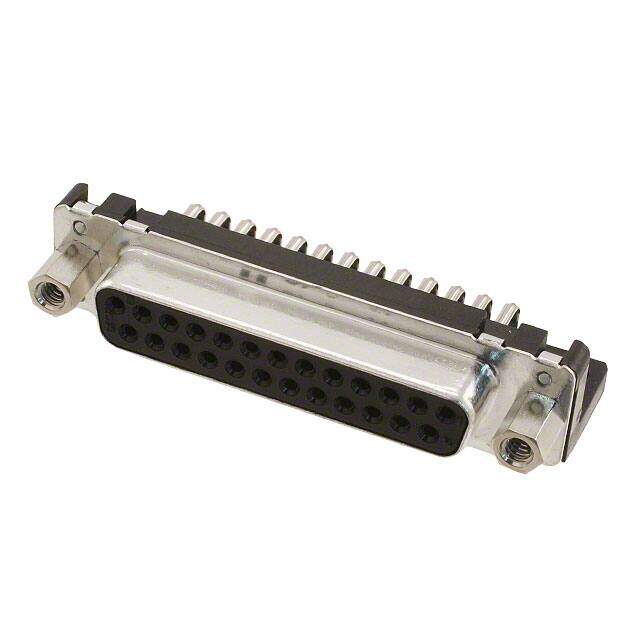

09663527613
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description
D-Sub Standard Connectors DSUB SV FEM SSDP ANG73-254 25P
PDF
/
Buying Options
Total Price: USD $8.53
Unit Price: USD $8.5272
≥1 USD $8.5272
≥10 USD $7.67184
≥100 USD $7.227264
≥500 USD $7.041936
≥1000 USD $6.856608
≥3000 USD $6.115384
Inventory: 296
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Contact Material Copper Alloy
Mount Through Hole
Mounting Type Through Hole, Right Angle
Dielectric Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Housing Material PBT
Shell Material, Finish Steel
Technical
Operating Temperature -55°C~125°C
Packaging Bulk
Feature Board Lock
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 25
Termination Solder
ECCN Code EAR99
Connector Type Receptacle, Female Sockets
Number of Rows 2
Gender Receptacle
HTS Code 8536.69.40.30
Subcategory D Type Connectors
Contact Finish - Mating NOT SPECIFIED
MIL Conformance NO
DIN Conformance YES
IEC Conformance YES
Filter Feature NO
Contact Type Signal
Mixed Contacts NO
Option GENERAL PURPOSE
Current Rating (Amps) 6.5A
Total Number of Contacts 25
Orientation Right Angle
Depth 21.2mm
Shell Finish TIN
Reliability COMMERCIAL
Number Of PCB Rows 2
PCB Contact Pattern STAGGERED
Mating Information MULTIPLE MATING PARTS AVAILABLE
UL Flammability Code 94V-0
Empty Shell NO
Flange Feature Mating Side, Female Screwlock (4-40)
Body/Shell Style PLUG
Connector Style D-Sub
Number of Ports 1
Insertion Force-Max 3.336 N
Contact Form Stamped
Shell Size, Connector Layout 3 DB B
Backset Spacing 0.409 (10.40mm)
Dimensions
Length 53.2mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
