09663527611
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description

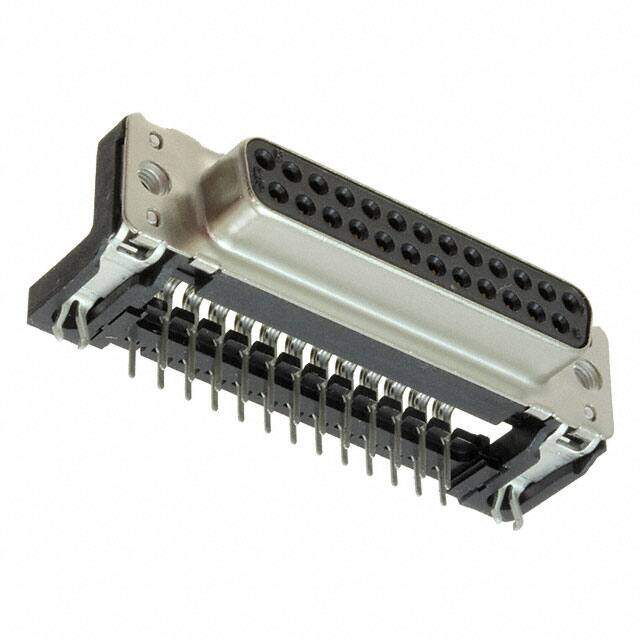

CONN D-SUB RCPT 25POS R/A SOLDER
PDF
/
Buying Options
Total Price: USD $7.44
Unit Price: USD $7.4448
≥1 USD $7.4448
≥10 USD $6.73112
≥100 USD $6.35888
≥500 USD $5.893624
≥1000 USD $5.27325
≥3000 USD $4.963059
Inventory: 141
Minimum: 1
-
+
Technical Details
Technical
Number Of PCB Rows 2
PCB Contact Pattern STAGGERED
Mating Information MULTIPLE MATING PARTS AVAILABLE
UL Flammability Code 94V-0
Empty Shell NO
Body Depth 0.583 inch
Flange Feature Housing/Shell (M3)
Body/Shell Style PLUG
Connector Style D-Sub
Number of Ports 1
Insertion Force-Max 3.336 N
Withdrawl Force-Min 3.336 N
Contact Form Stamped
Shell Size, Connector Layout 3 DB B
Backset Spacing 0.409 (10.40mm)
Reference Standard UL
Shell Finish TIN
Current Rating 6A
Orientation Right Angle
Total Number of Contacts 25
Pitch 2.54mm
Current Rating (Amps) 6.5A
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Signal
Filter Feature NO
IEC Conformance YES
DIN Conformance YES
MIL Conformance NO
Contact Finish - Mating NOT SPECIFIED
Subcategory D Type Connectors
HTS Code 8536.69.40.30
Gender Receptacle
Number of Rows 2
Connector Type Receptacle, Female Sockets
ECCN Code EAR99
Termination Solder
Number of Terminations 25
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Board Lock
Packaging Bulk
Operating Temperature -55°C~125°C
Dimensions
Length 53.2mm
Width 13.6mm
Compliance
Material Flammability Rating UL94 V-0
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Physical
Shell Material, Finish Steel
Body Material Metal
Dielectric Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Insulation Material GLASS FILLED POLYBUTYLENE TEREPHTHALATE-POLYESTER
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Plating Gold
Contact Material Copper Alloy
