Category Connectors, Interconnects / D-Sub Connectors
Description

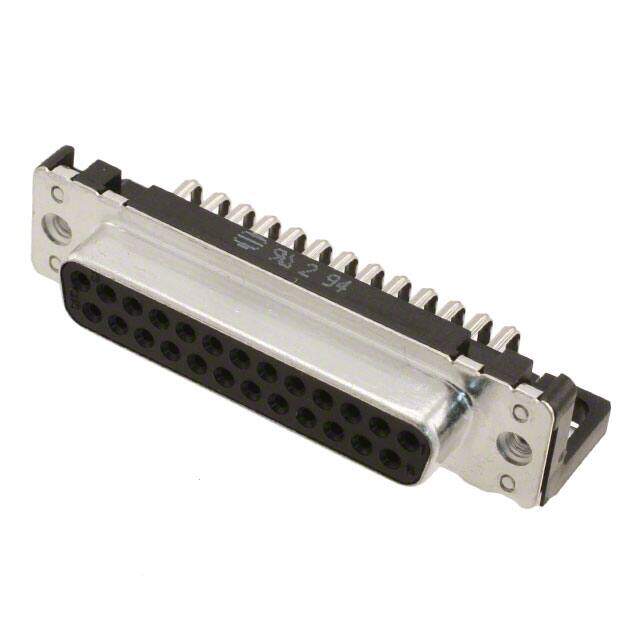

CONN D-SUB RCPT 25POS R/A SOLDER
PDF
/
Buying Options
Total Price: USD $7.66
Unit Price: USD $7.6648
≥1 USD $7.6648
≥10 USD $6.89832
≥100 USD $6.498624
≥500 USD $6.331776
≥1000 USD $6.165192
≥3000 USD $5.49868
Inventory: 232
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Material Flammability Rating UL94 V-0
Dimensions
Width 13.6mm
Length 53.2mm
Height 12.5mm
Technical
Test Voltage 1kV
Backset Spacing 0.409 (10.40mm)
Shell Size, Connector Layout 3 DB B
Contact Form Stamped
Withdrawl Force-Min 3.336 N
Insertion Force-Max 3.336 N
Body Plating Tin
Number of Ports 1
Connector Style D-Sub
Body/Shell Style PLUG
Flange Feature Housing/Shell (4-40)
Working Voltage 250V
Body Depth 0.583 inch
Empty Shell NO
UL Flammability Code 94V-0
PCB Contact Pattern STAGGERED
Number Of PCB Rows 2
Voltage - Rated AC 1kV
Reference Standard UL
Shell Finish TIN
Current Rating 7.5A
Orientation Right Angle
Total Number of Contacts 25
Pitch 2.76mm
Current Rating (Amps) 6.5A
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Signal
Filter Feature NO
IEC Conformance YES
DIN Conformance YES
MIL Conformance NO
Contact Finish - Mating NOT SPECIFIED
Voltage - Rated DC 250V
Subcategory D Type Connectors
HTS Code 8536.69.40.30
Gender Receptacle
Number of Rows 2
Connector Type Receptacle, Female Sockets
ECCN Code EAR99
Termination Solder
Number of Terminations 25
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Board Lock
Packaging Bulk
Operating Temperature -55°C~125°C
Physical
Body Material Metal
Dielectric Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Material Steel
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Plating Gold
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 4 Weeks
Alternative Model
